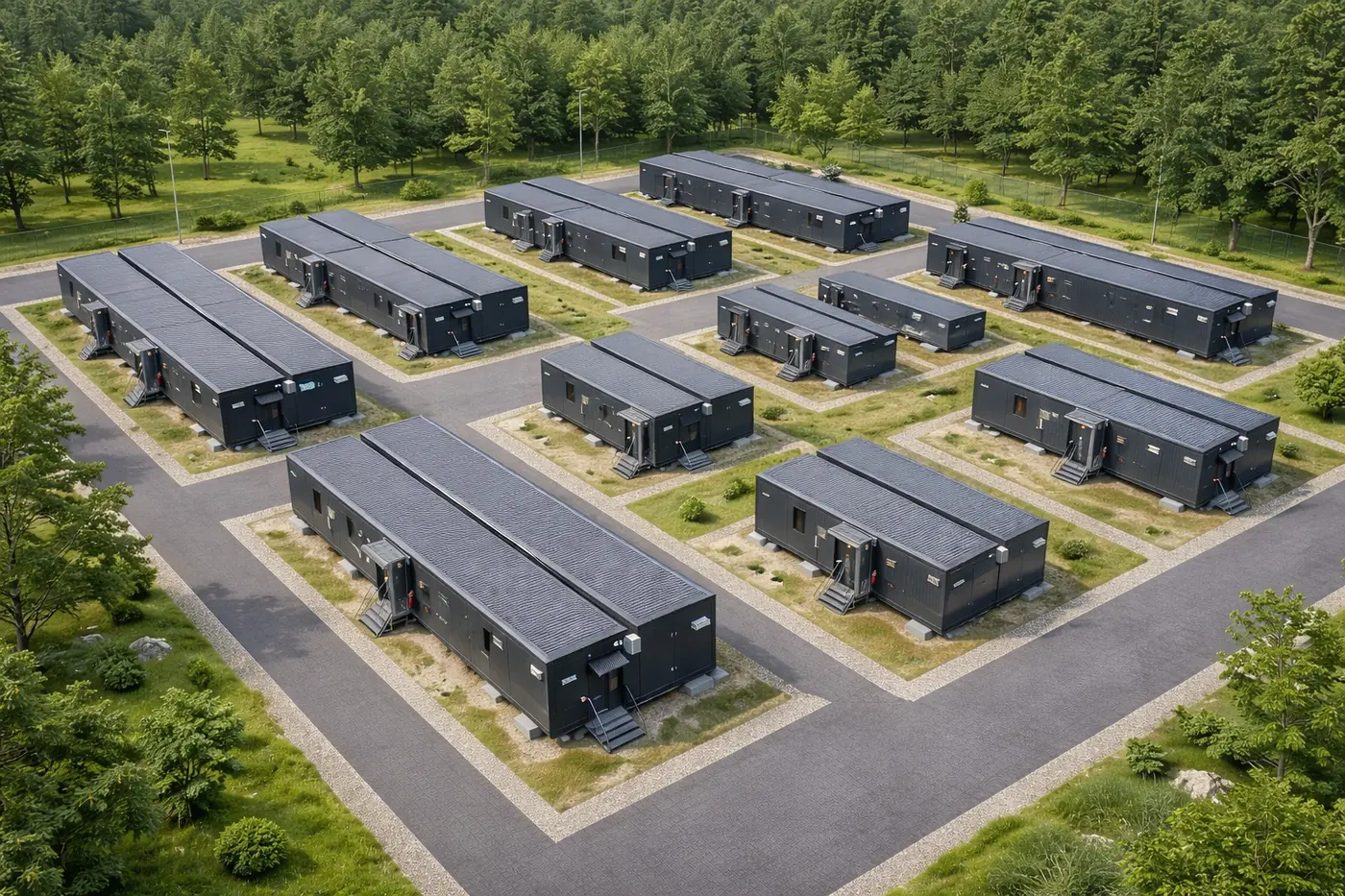

Container shooting range

MOST modular shooting ranges cover everything from a single 7 m lane in a shipping container to tactical halls with a 200 m axis, shoot houses and mobile bullet traps — certified, fully ventilated and equipped with a multimedia training system.

Key features

Ammunition with muzzle energy up to 3,600 J incl. 7.62 mm NATO

Shooting axis from 7 m up to 200 m depending on the line

Firing zone width up to 10 m (MOST-10)

Certificates of Compliance from the Military Institute of Armament Technology

High-power ventilation with 99.9% filtration

Training with live weapons and laser simulators

Static and dynamic scenarios, short-burst automatic fire

Expandable with shoot houses, CQB zones and mobile bullet traps

Overview

Range comparison

From a single-container range to tactical halls with a 200 m axis. All lines are fully enclosed, operate year-round regardless of weather and require no permanent connection to the ground.

Parameter	MOST-1	MOST-2	MOST-5	MOST-10
Shooting axis	7 m (simulated up to 100 m)	25 m	25 / 50 / 100 / 200 m	25 / 50 / 100 / 200 m
Firing zone width	1 stall	2 stalls	5 m	10 m
Internal height	2.9 m (container)	2.5 m	2.5 m	2.9 m
Construction	1× 40ft HC container	4 modules (3× 40ft HC + 1× 10ft HC)	2.5 m steel modules	2.5 m steel modules
Peak power	11 kW	42 kW	94–160 kW	170–283 kW
Lead time	60 days	90 days	180–360 days	180–360 days

All lines: ammunition up to 3,600 J, full projectile containment, ranges can be disassembled and relocated. MOST-5 and MOST-10 hold Certificates of Compliance from the Military Institute of Armament Technology (Zielonka, Poland). The MOST-SH modular shoot house and mobile bullet traps complete the portfolio.

MOST-1 line

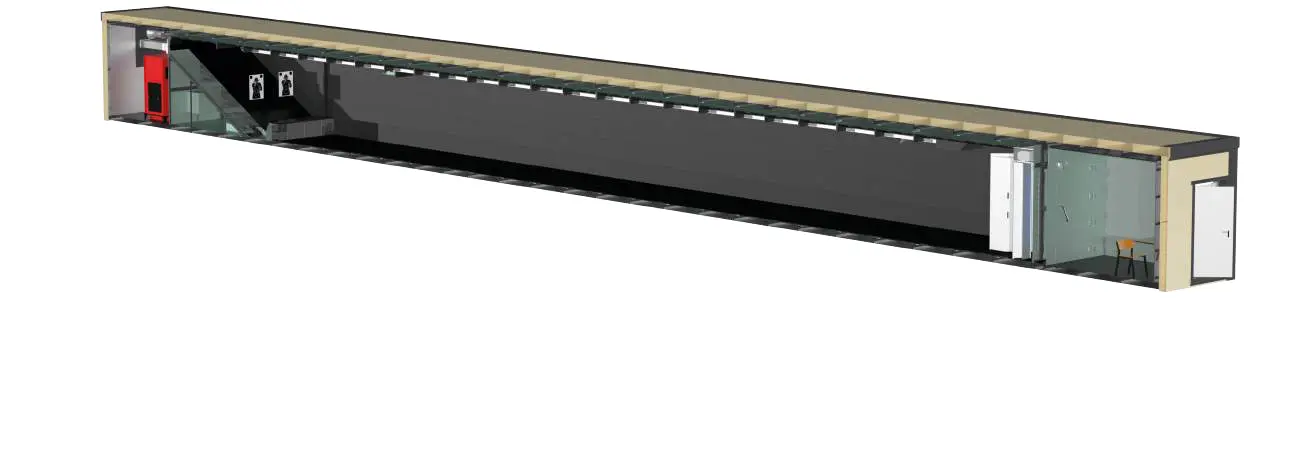

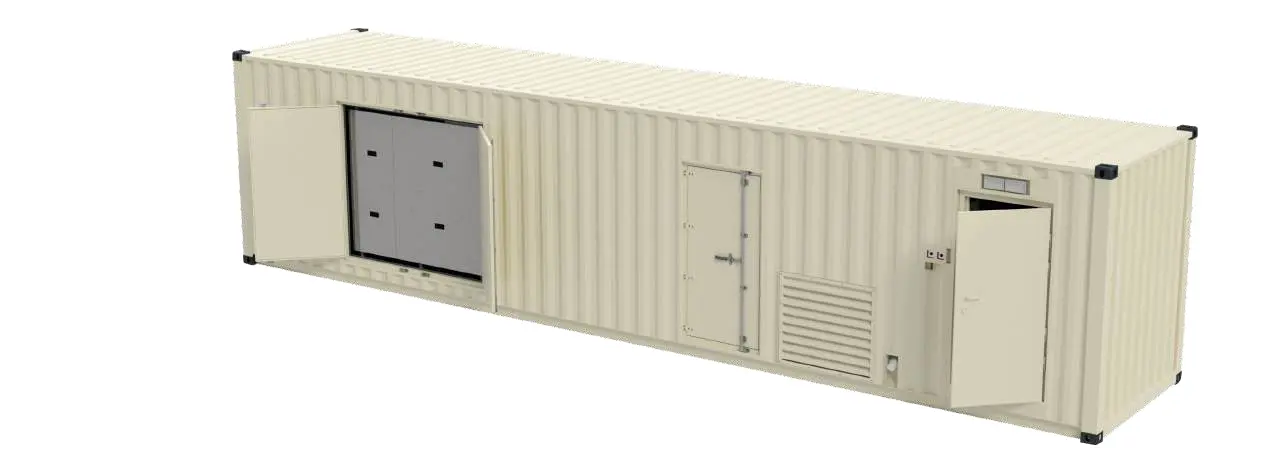

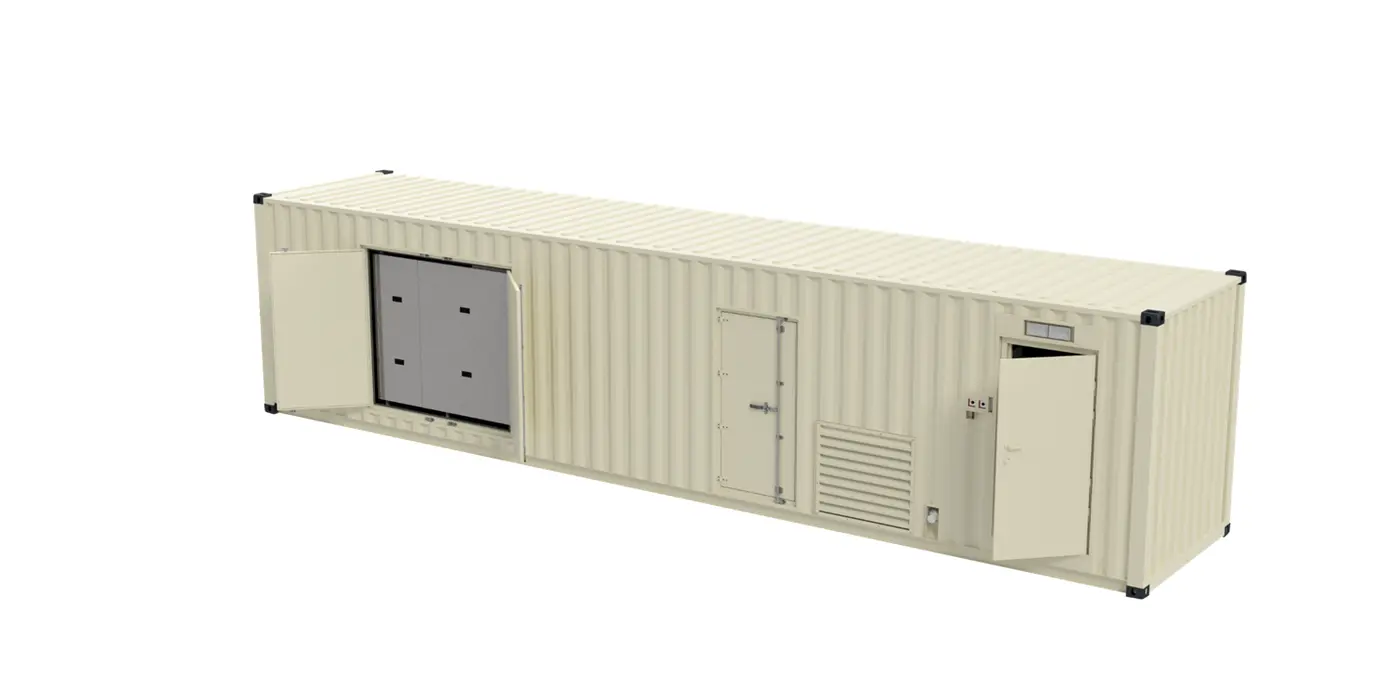

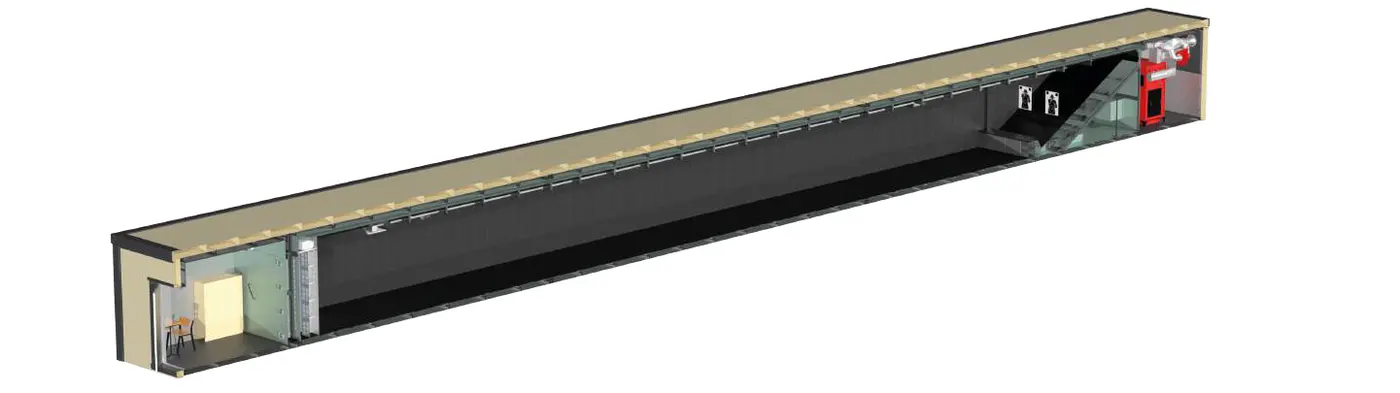

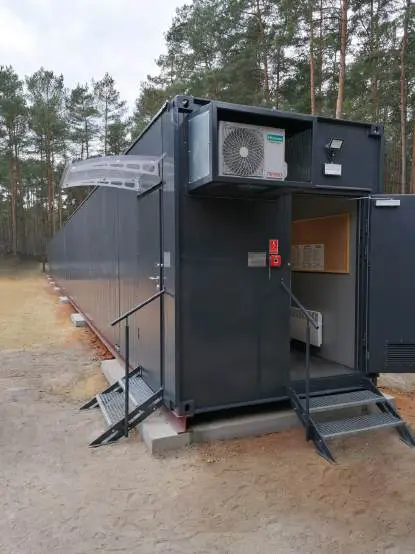

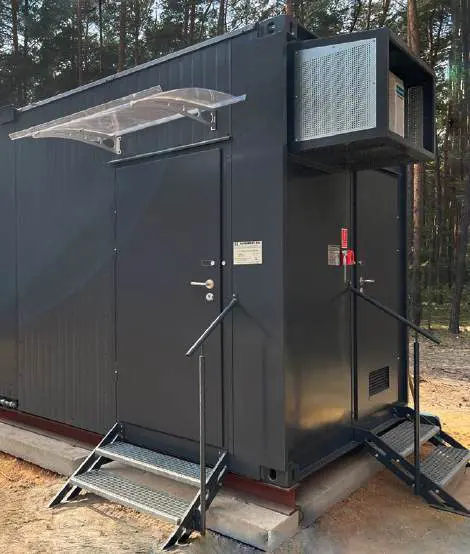

MOST-1 — mobile container shooting range

A personal range, a commercial facility and a training site for uniformed services in a single shipping container. The 40ft HC format allows deployment on vehicles, aboard ships and air transport — you can shoot practically anywhere.

Static and dynamic shooting with live weapons or IR-laser replicas

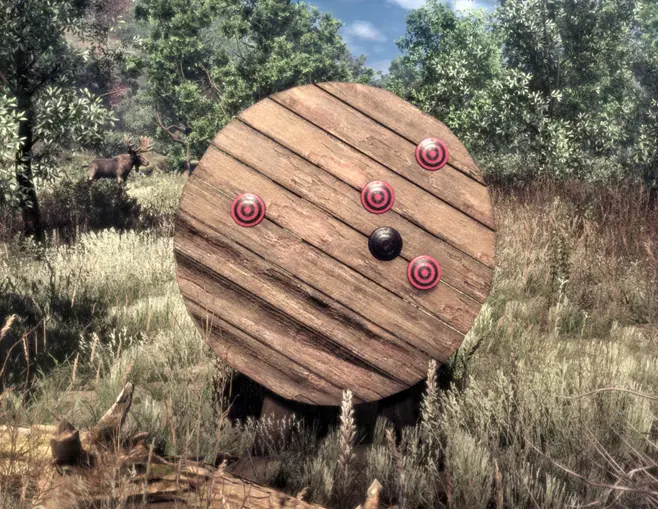

Video simulator for basic and advanced training
Easy configuration of exercise parameters and scenarios

Parameter	Value
Shooting axis	7 m — a multifunctional video simulator projects scenarios with simulated distances up to 100 m
Dimensions	12.2 × 2.45 × 2.9 m (40ft HC container)
Shooting stalls	1, sized for unobstructed instructor control
Bullet trap	granular, long service life
Ammunition	4.5 mm air guns (shot); 5.6 mm rimfire; 7.62 / 9.65 / 11.43 mm centerfire pistols and revolvers; 12-gauge shotguns; 7.62 mm NATO rifles and carbines (not supported: armour-piercing, tracer and incendiary rounds)
Peak power	11 kW
HVAC	ventilation + air conditioning, highest air quality
Lead time	60 days

MOST-2 line

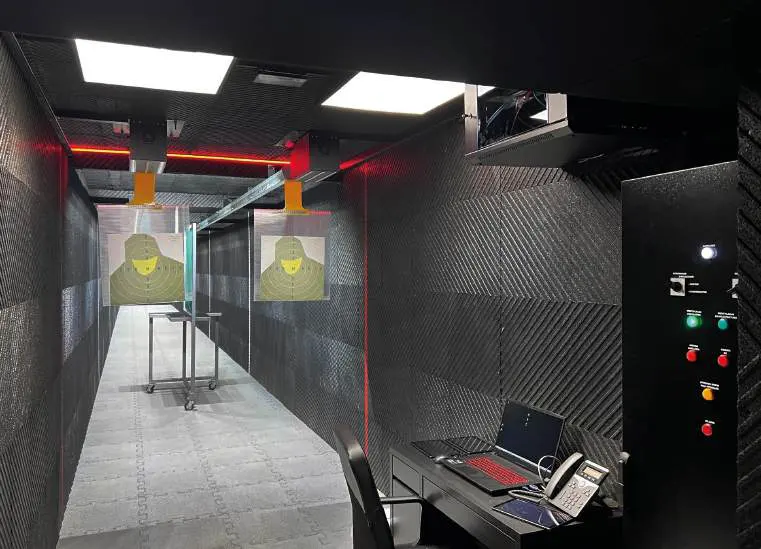

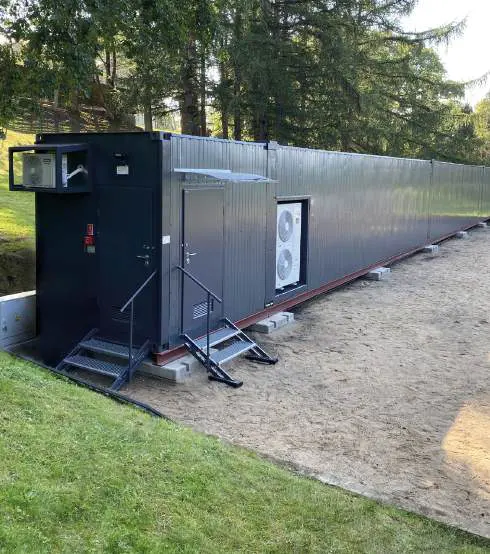

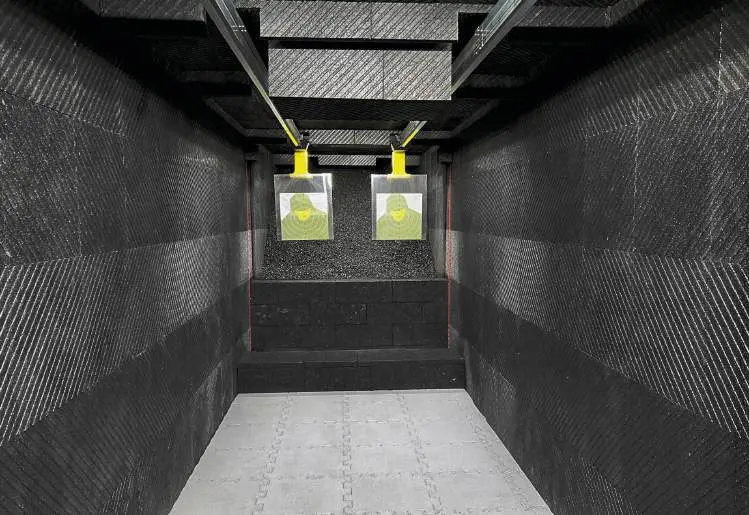

MOST-2 — 25 m container shooting range

A full-featured 25 m range built from four container modules. An advanced training facility for all uniformed services and commercial operation — with a logistics room, a firing zone and a separate ventilation engine room.

Parameter	Value
Shooting axis	25 m (actual length)
External assembly length	39.6 m; width 2.5 m + 3 m ventilation engine room
Assembly	4 modules — 3× 40ft HC + 1× 10ft HC
Shooting stalls	2
Equipment	tactical lighting, target transporters, CCTV, optional multimedia trainer
Bullet trap	durable granular
Ammunition	4.5 mm air guns (shot); 5.6 mm rimfire; 7.62 / 9.65 / 11.43 mm centerfire pistols and revolvers; 12-gauge shotguns; 7.62 mm NATO rifles and carbines (not supported: armour-piercing, tracer and incendiary rounds)
Peak power	42 kW
Noise	low outdoor noise levels
Lead time	90 days

MOST-5 and MOST-10 lines

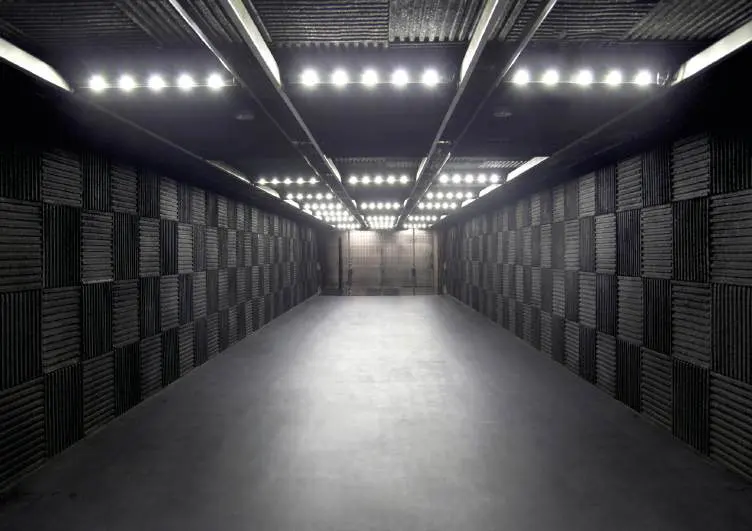

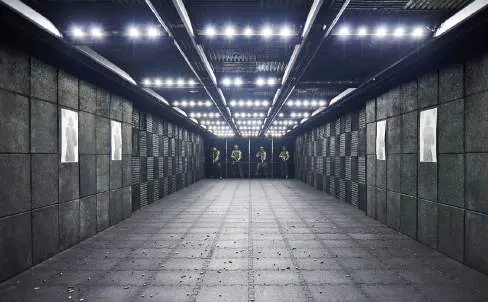

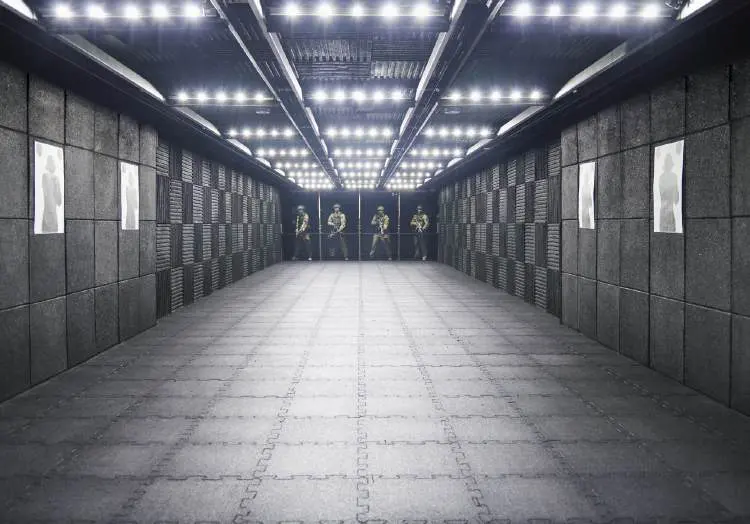

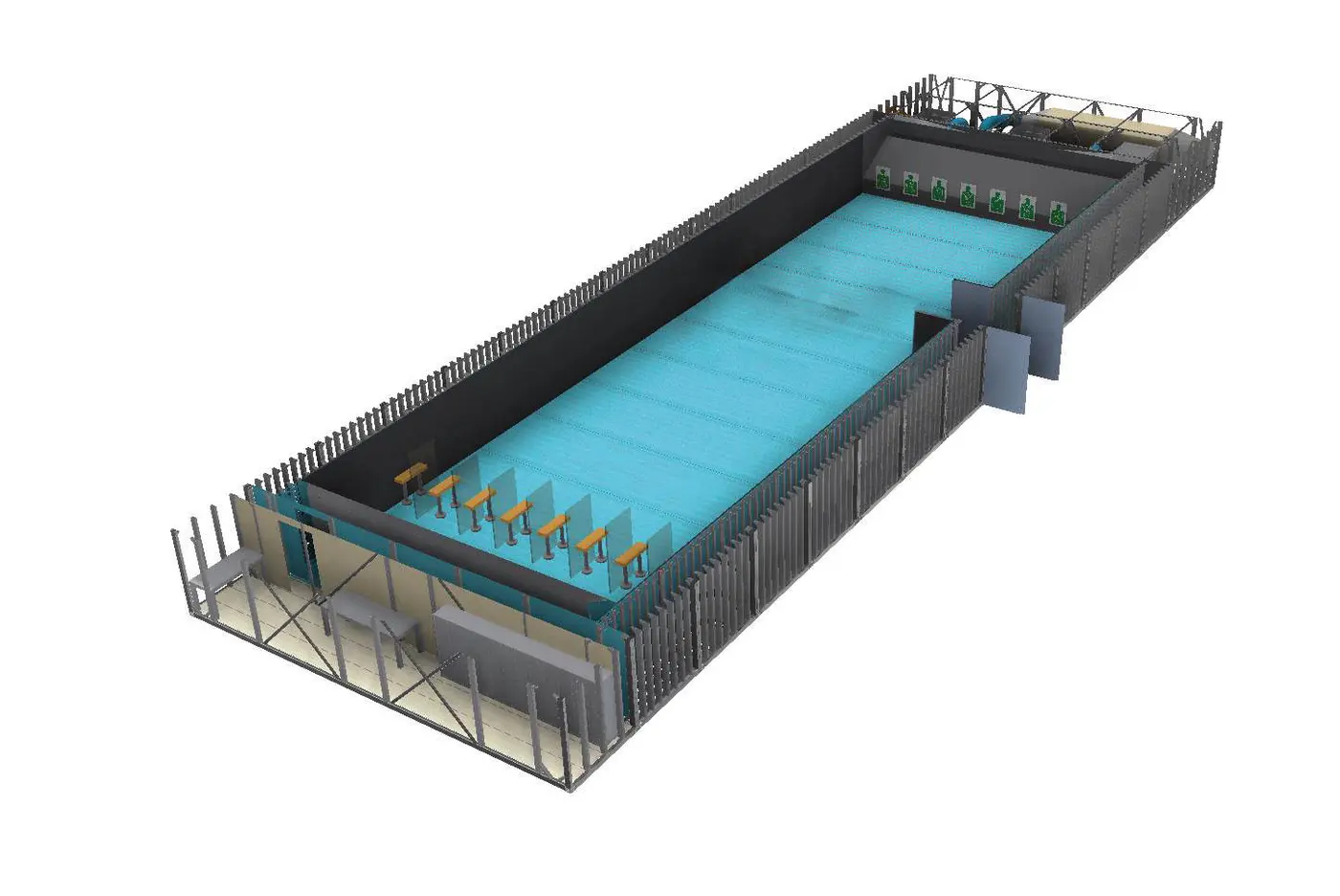

MOST-5 / MOST-10 — modular tactical shooting ranges

Fully enclosed modular tactical ranges for uniformed services and private operation. Steel modules are transported to any paved surface, bolted together and commissioned — no permanent ground connection, with the option to extend lanes, disassemble and relocate later. Construction takes 180–360 days depending on size.

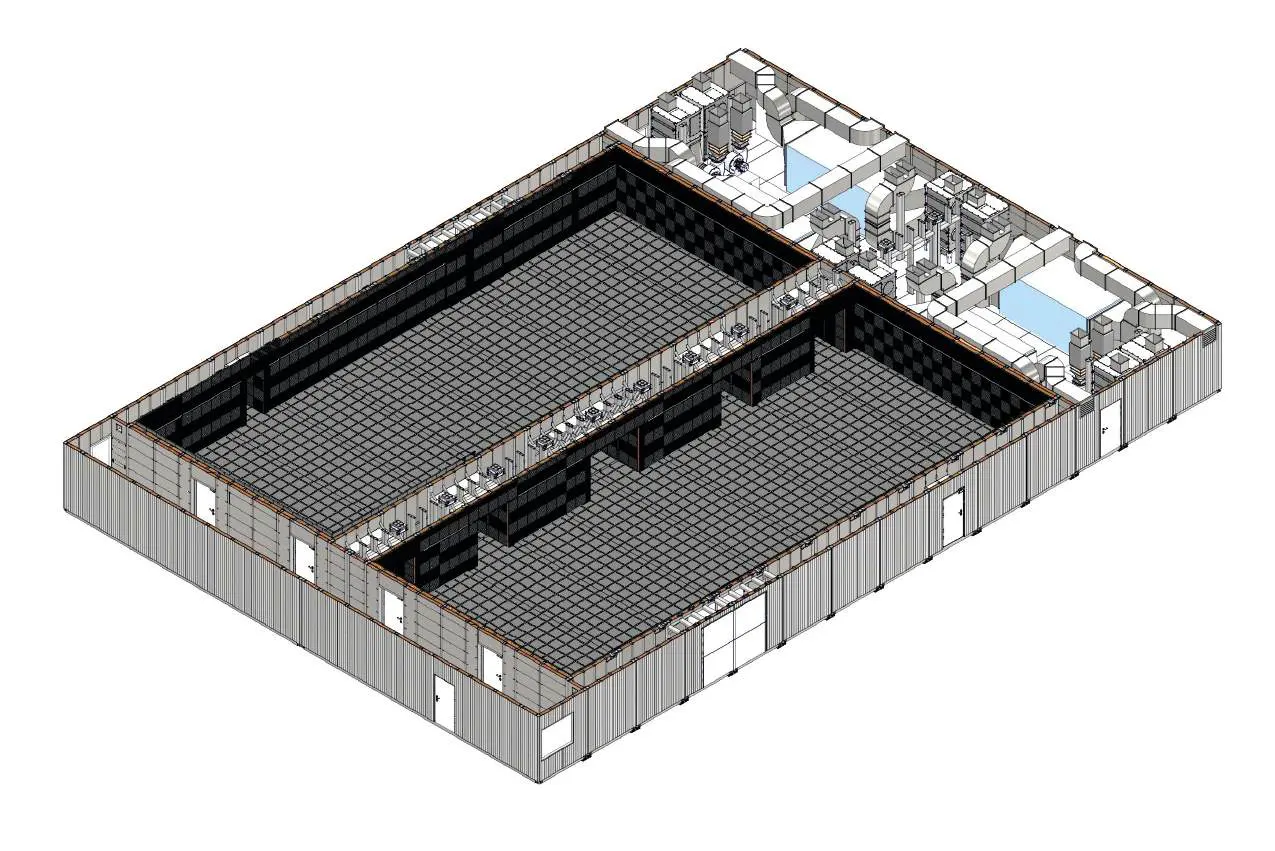

Range structure

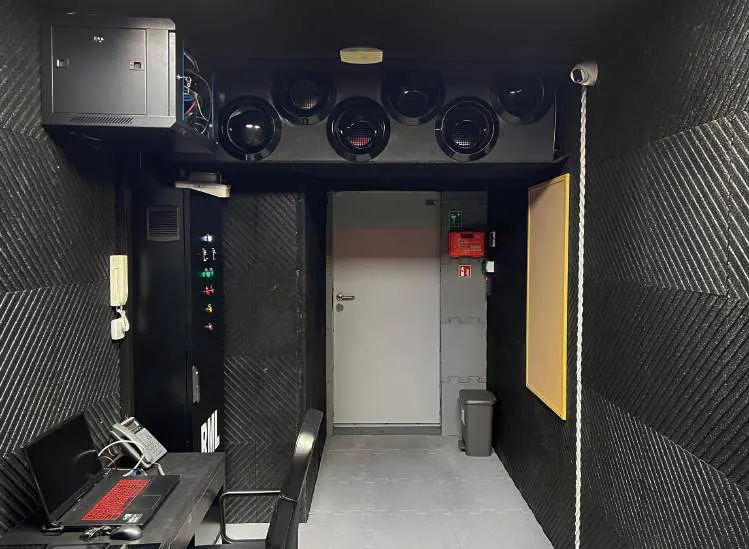

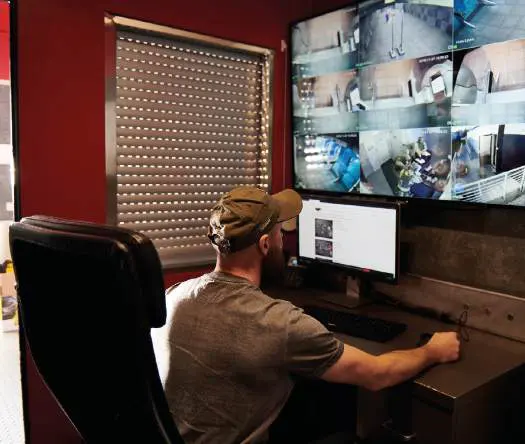

Logistic moduleThe range master's control room: CCTV feeds, ventilation, light and sound controls. Expandable with a medical station, briefing room or locker room.

Communication moduleConnects the logistics area with the stalls. An “Air Wall” expansion chamber supplies fresh air to the firing zone.

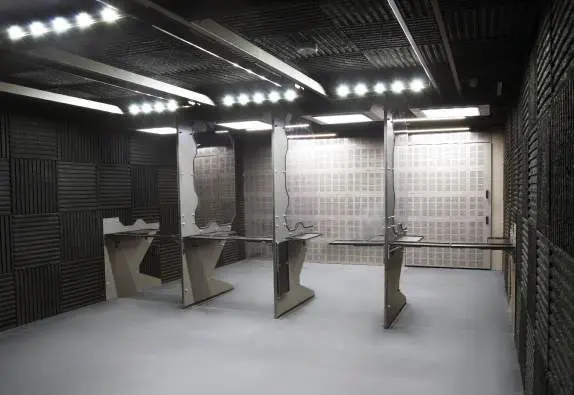

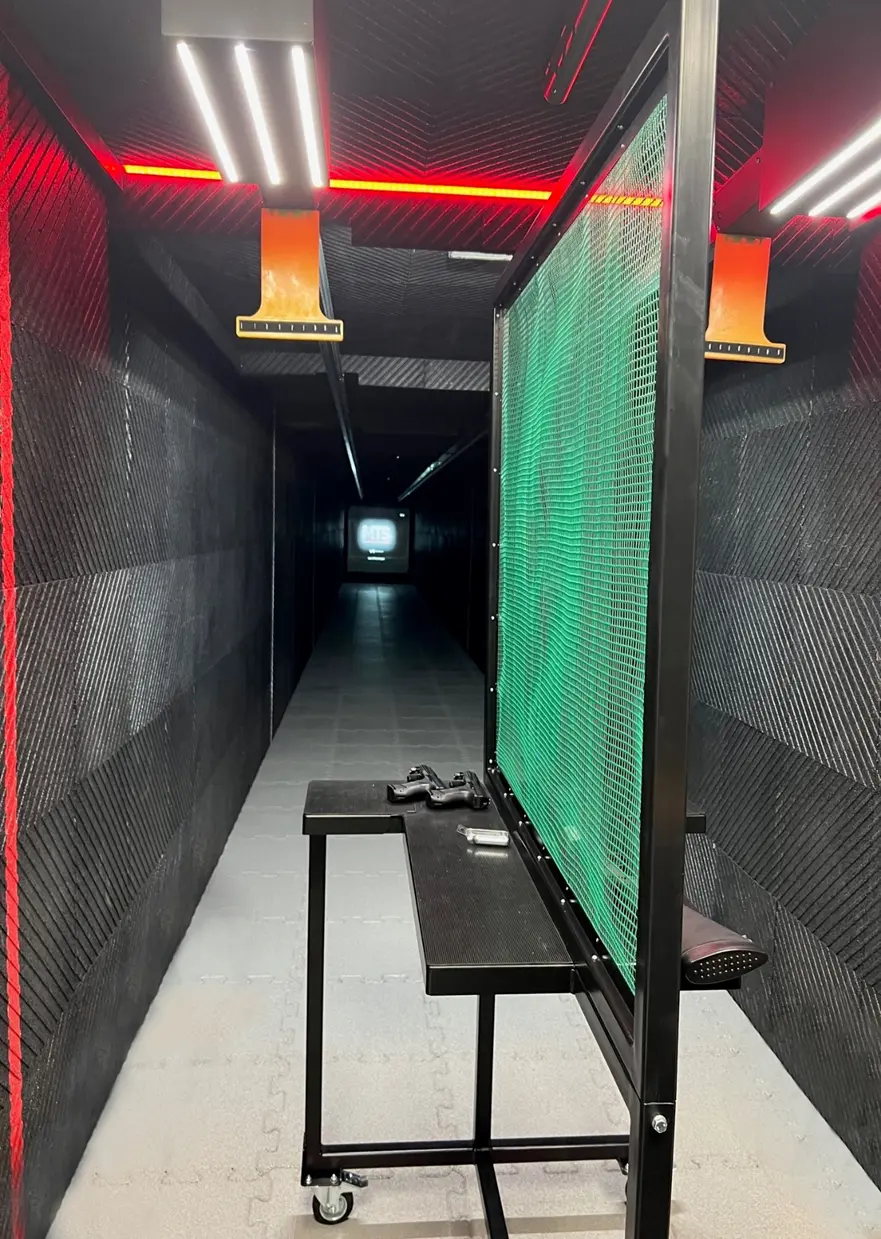

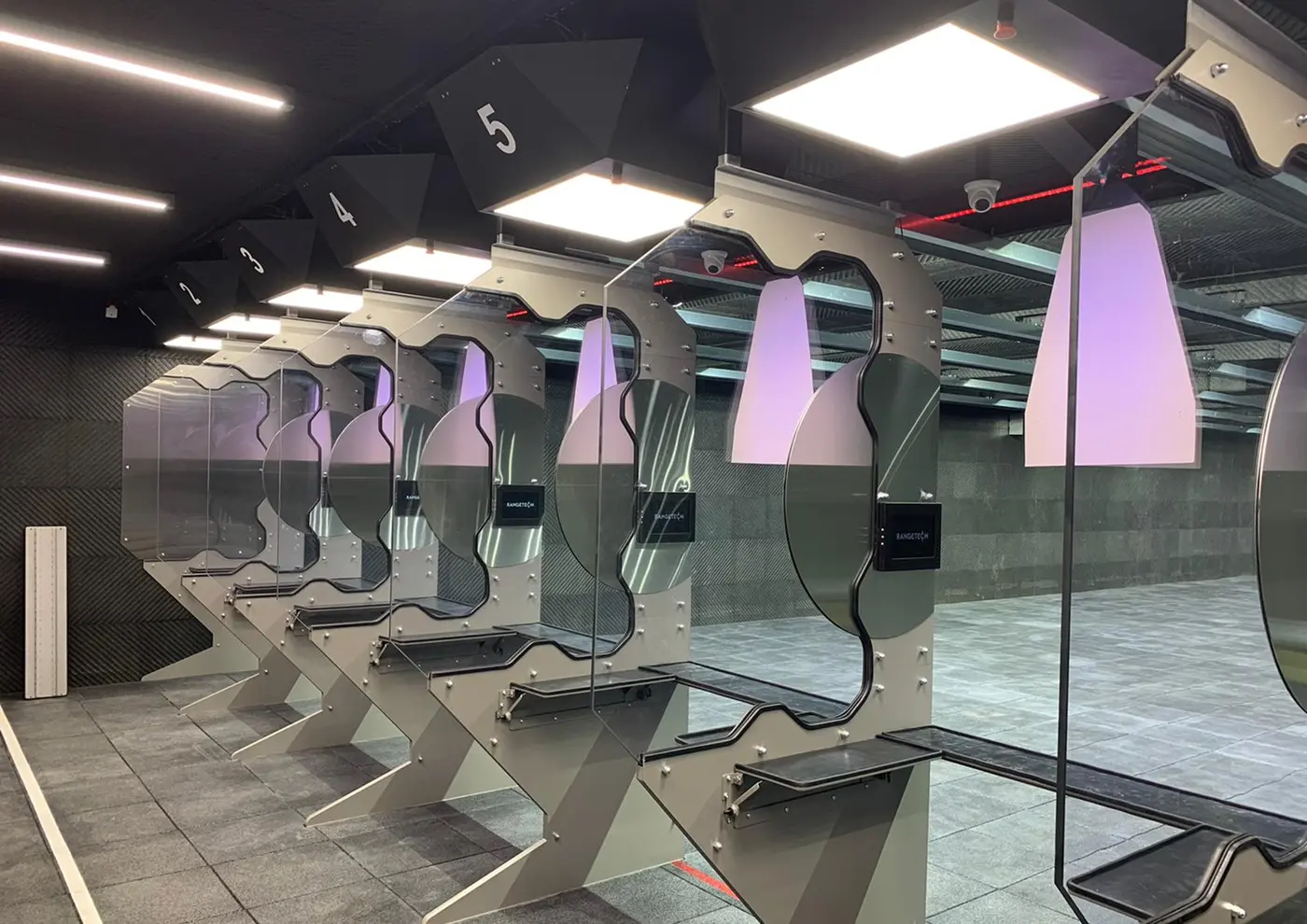

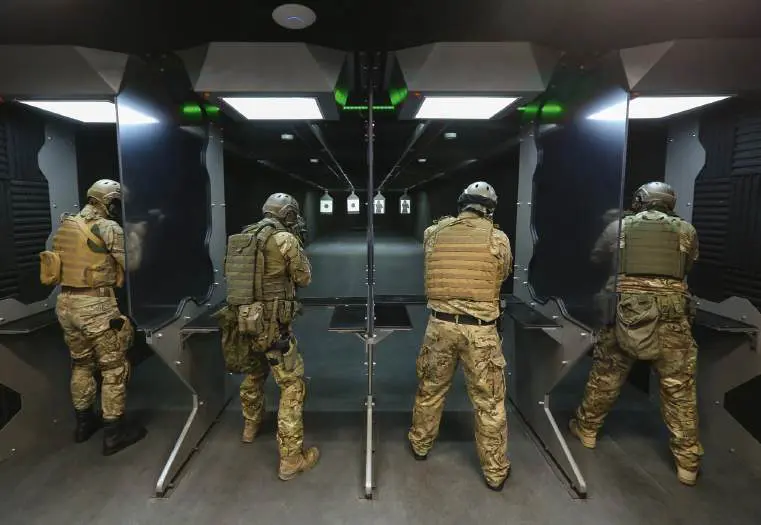

Shooting stall moduleSeparate stalls with removable partitions, ceiling lighting, cameras and target-feeder control panels.

Shooting modules2.5 m modules form lanes of 25–200 m. Anti-ricochet lining; optional mobile bullet traps create a 180° firing sector.

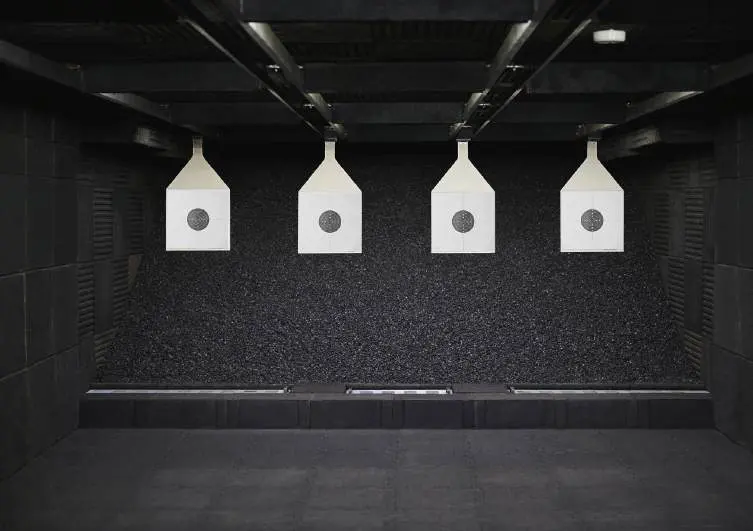

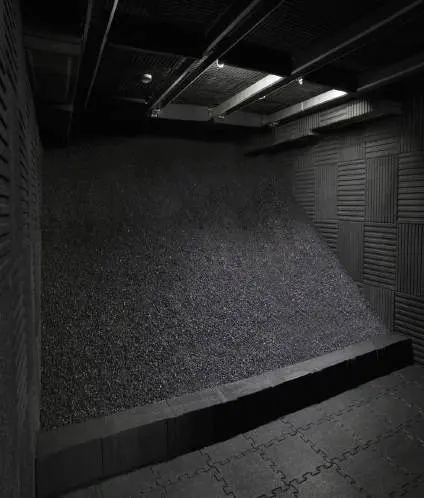

Bullet trap moduleA granular trap across the full width with a capacity of approx. 100,000 shots per lane; pre-installed ventilation connections.

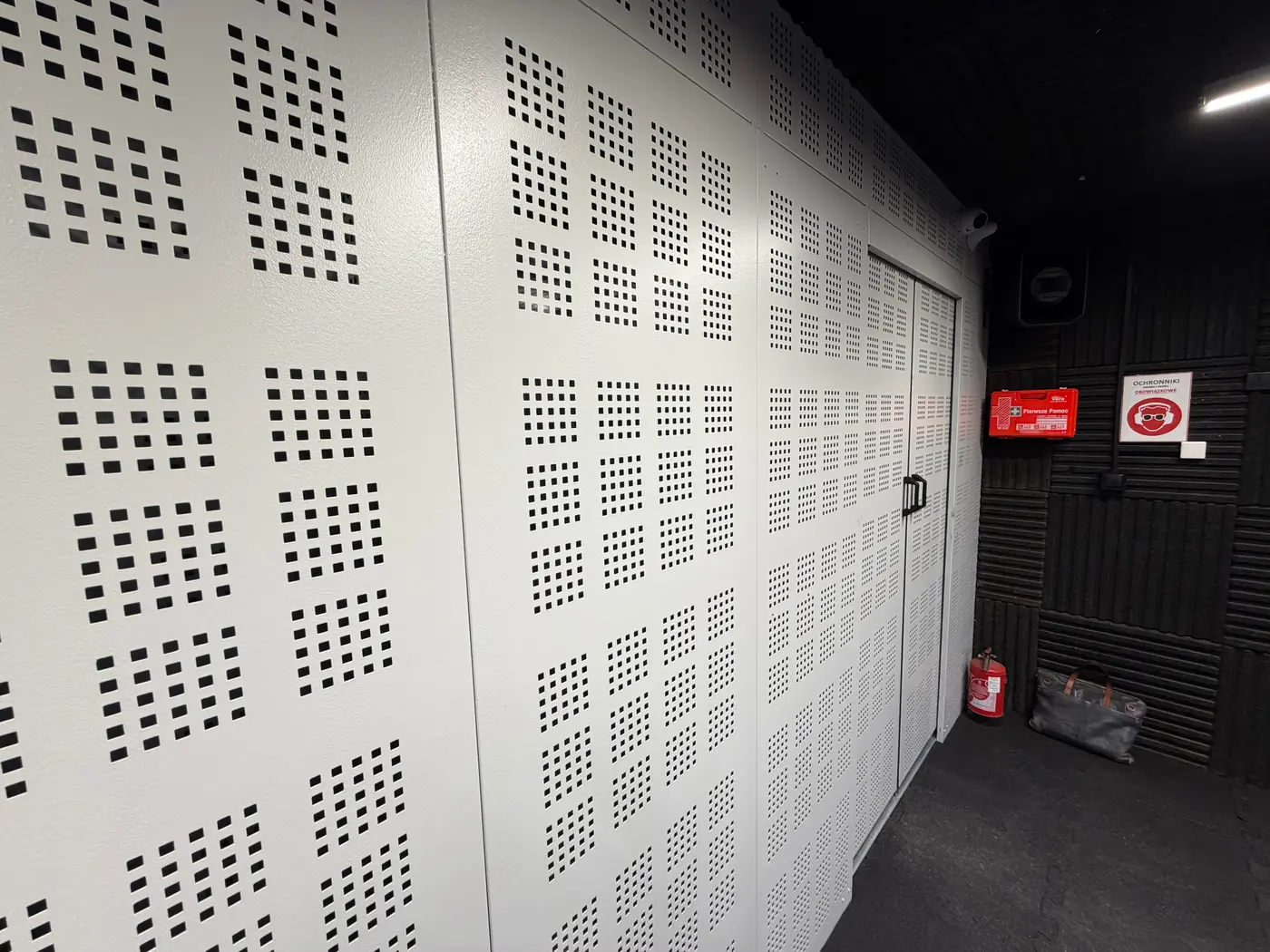

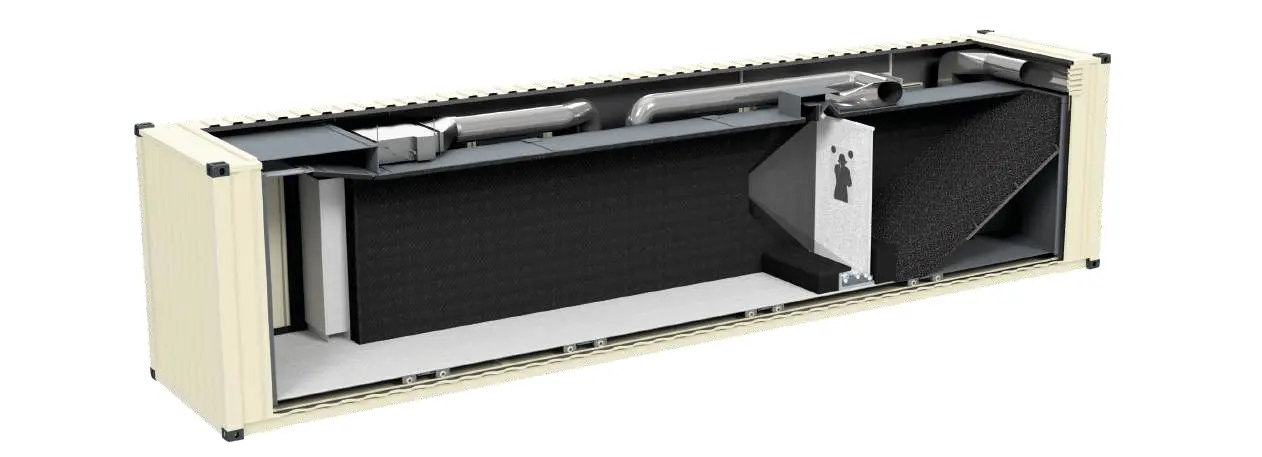

Ventilation module99.9% filtration, heat recovery, winter heating and summer cooling with automatic controls.

CAR module (optional)A garage-style door lets vehicles enter the lane zone — training for combat in and around vehicles.

Technical specifications per size

Parameter	MOST-5 / 25	MOST-5 / 50	MOST-5 / 100	MOST-5 / 200	MOST-10 / 25	MOST-10 / 50	MOST-10 / 100	MOST-10 / 200
Firing zone w × l [m]	5 × 25	5 × 50	5 × 100	5 × 200	10 × 25	10 × 50	10 × 100	10 × 200
Internal height [m]	2.5	2.5	2.5	2.5	2.9	2.9	2.9	2.9
External width [m]	6.5	6.5	6.5	6.5	12.6	12.6	12.6	12.6
External length [m]	40	65	115	215	40	65	115	215
External height [m]	4.4	4.4	4.4	4.4	4.6	4.6	4.6	4.6
Peak power [kW]	94	100	120	160	170	179	215	283
Overall weight [t]	140	225	395	734	273	437	766	1,425

Safety

Ballistics, HVAC and controls

Parameter	Value
Safe limit angle (ricochet angle)	16°
Projectile containment	full containment of fired projectiles inside the facility
Main trap	bulk granular; side walls and ceiling of steel panels with anti-ricochet rubber
Supported ammunition	4.5 mm air guns (shot); 5.6 mm rimfire; 7.62 / 9.65 / 11.43 mm centerfire pistols and revolvers; 12-gauge shotguns; 7.62 mm NATO rifles and carbines (not supported: armour-piercing, tracer and incendiary rounds)
Automatic firearms	short-burst fire (up to 5 rounds)
Trap cleaning interval	MOST-5: approx. every 400,000 rounds · MOST-10: approx. every 800,000 rounds
Air filtration	99.9% separation efficiency; lead concentrations reduced below limits
Outdoor noise	55 dB(A) measured 5 m from the range
Lighting	main, tactical (RGB LED with strobe) and emergency
CCTV	IP cameras at every stall with recording; optional hit-location integration

Target systems and scenario effects

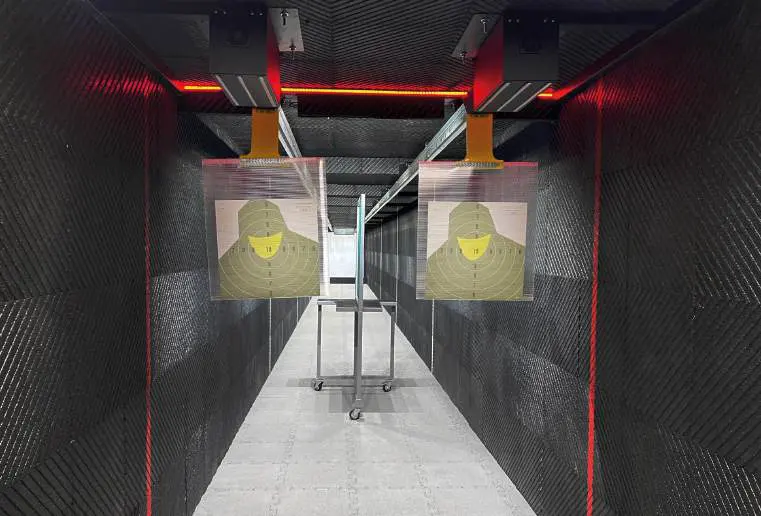

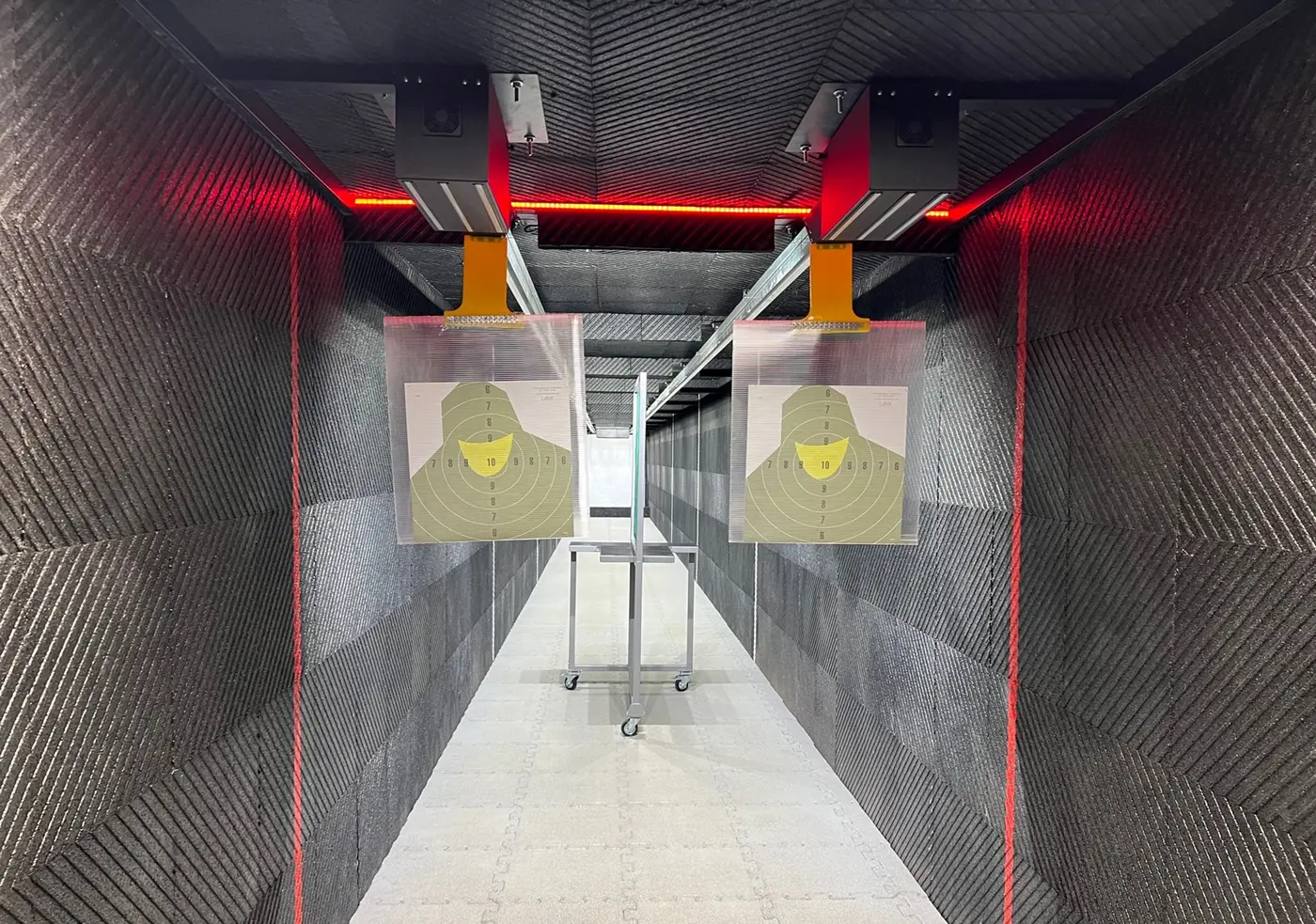

Projectile-hardened target carriers with stepless speed control and programmable, highly accurate positioning
Turntables with 360° rotation and an optional tilt arm for targets behind cover
Control from PCs, tablets, touch screens and hard-wired panels
Tactical RGB LED lighting with ballistic shielding, stepless dimming and strobe mode
A fully programmable audio system for any sound scenario

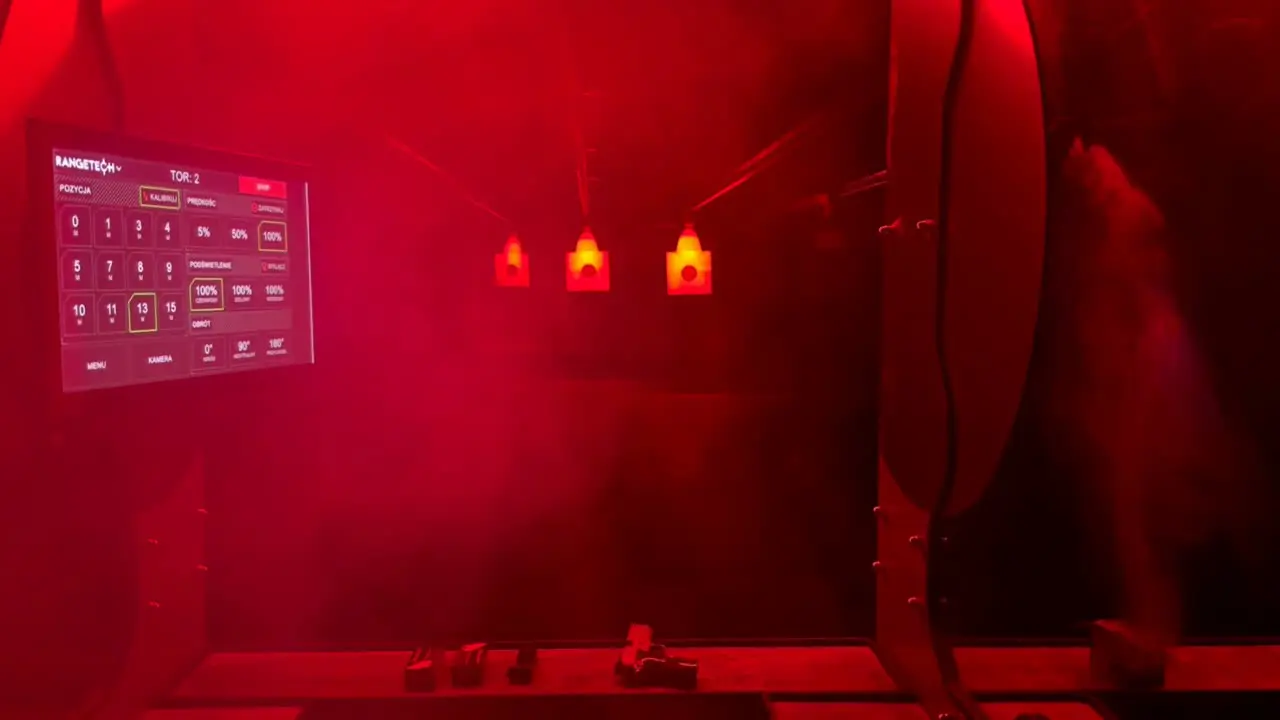

Scenario effects: strobes, artificial fog, sound effects

MOST-SH

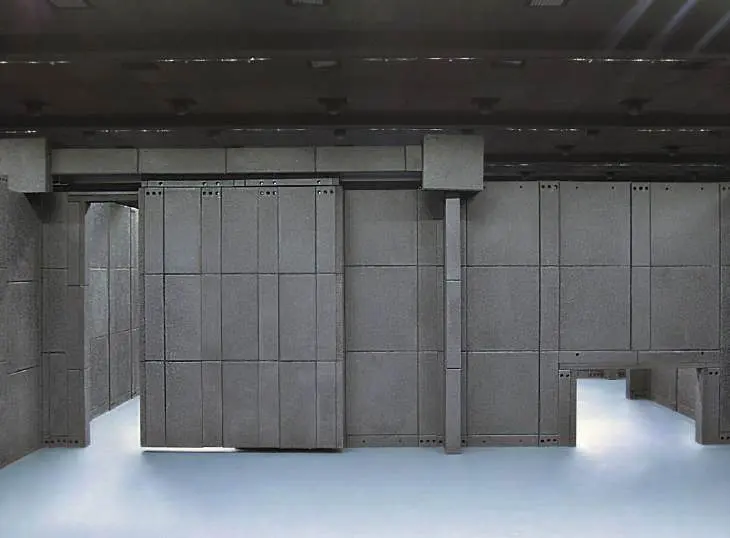

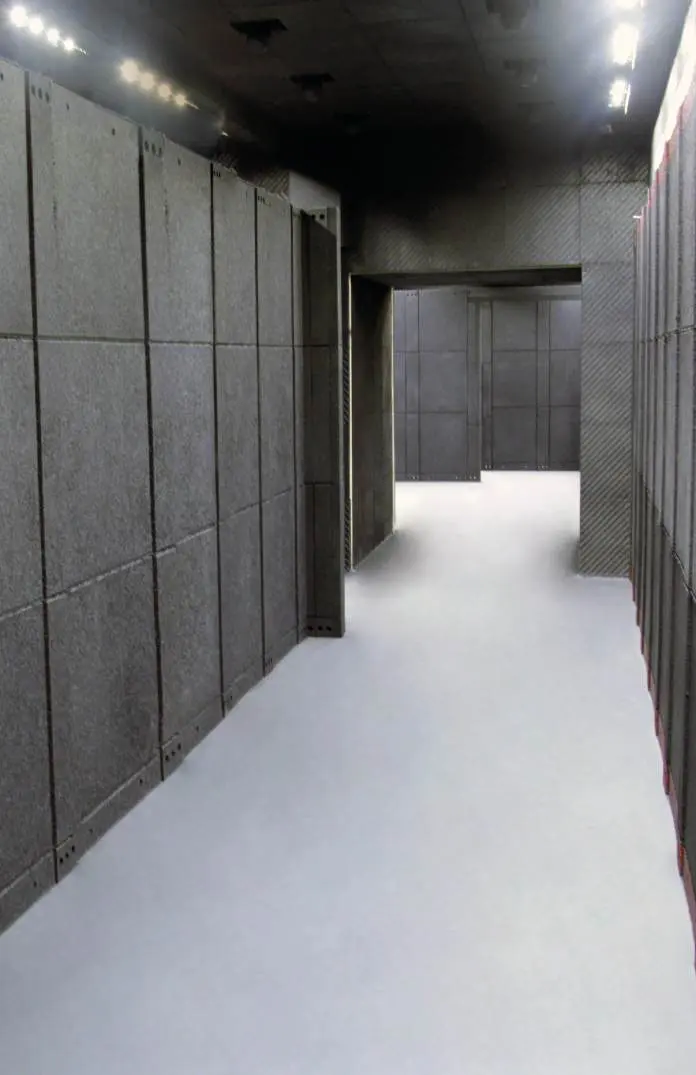

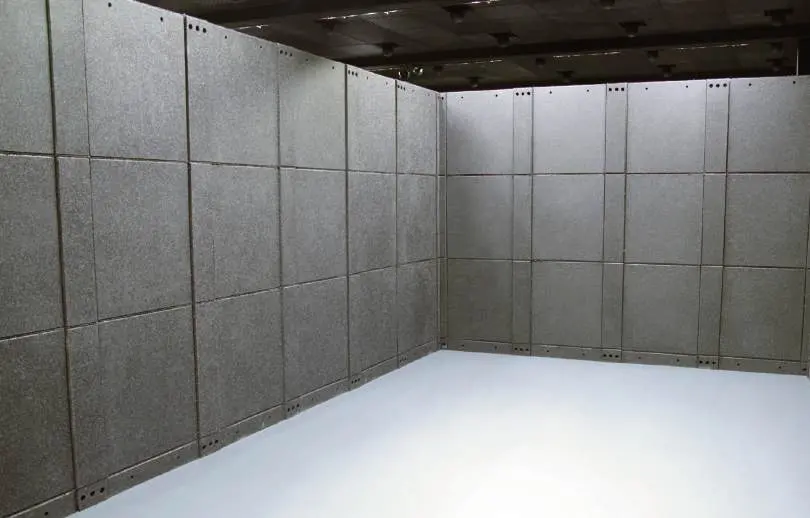

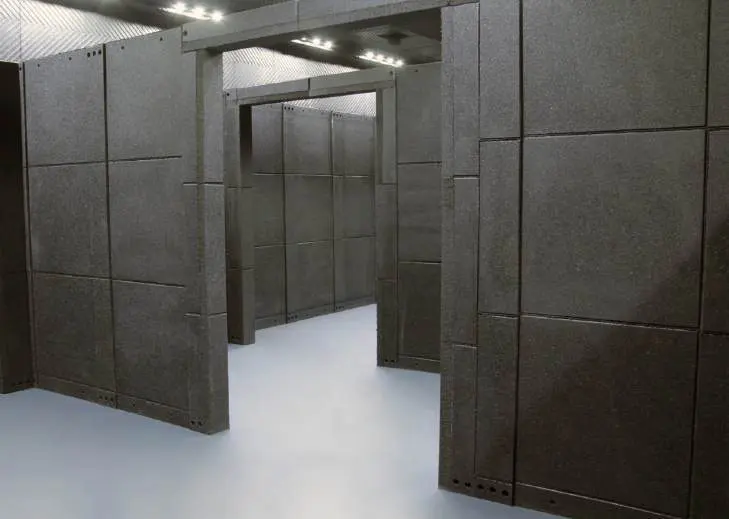

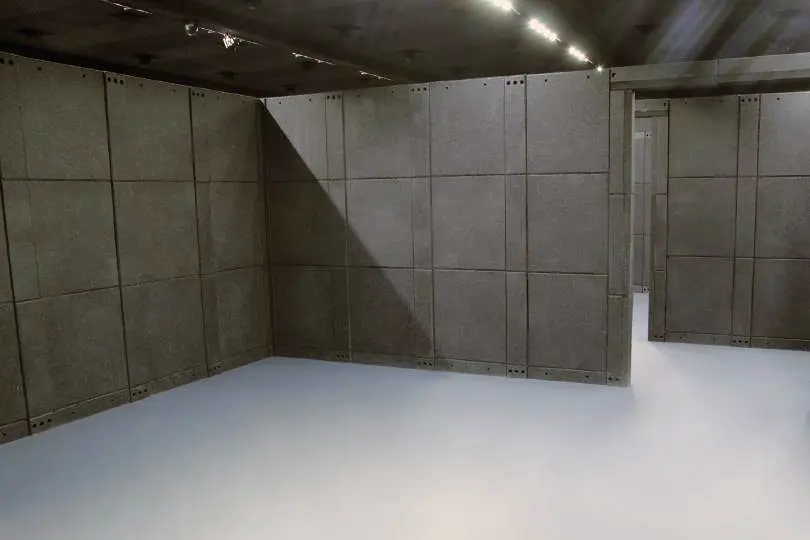

MOST-SH — modular shoot house

A modular system for live-ammunition training up to 3,600 J. The modules build a shoot house, a sheltered or outdoor range, or an in-vehicle combat training site — in any floor plan, with staged expansion over time. Specify the desired layout, or choose from predefined configurations.

Scaling of training difficulty and scenario condition variations
Challenging CQB situations in near-life-like conditions

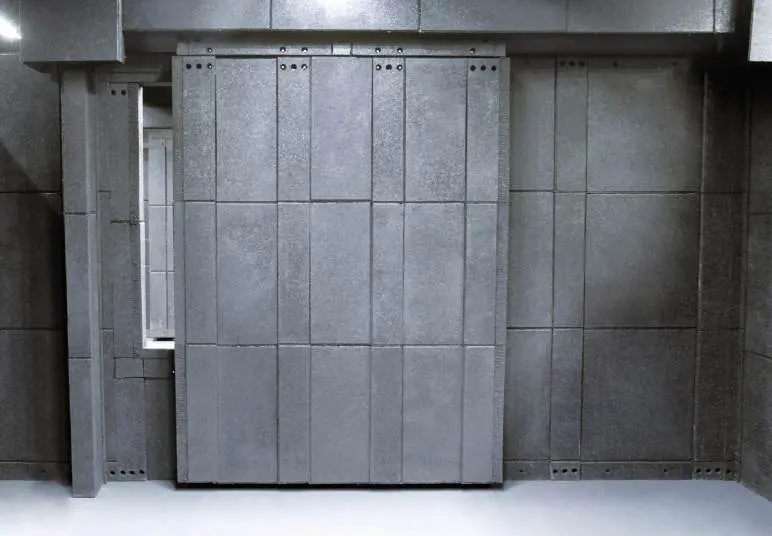

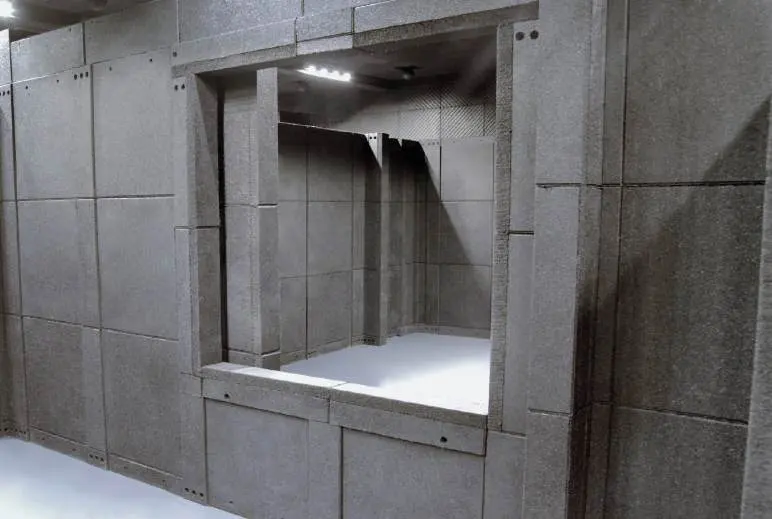

Modules: KMS-600W mobile bullet trap, SLIDER sliding cover, PIVOT wall, window, door and tunnel modules
Staged deployment — the system grows with your needs

Bullet traps

Mobile bullet traps

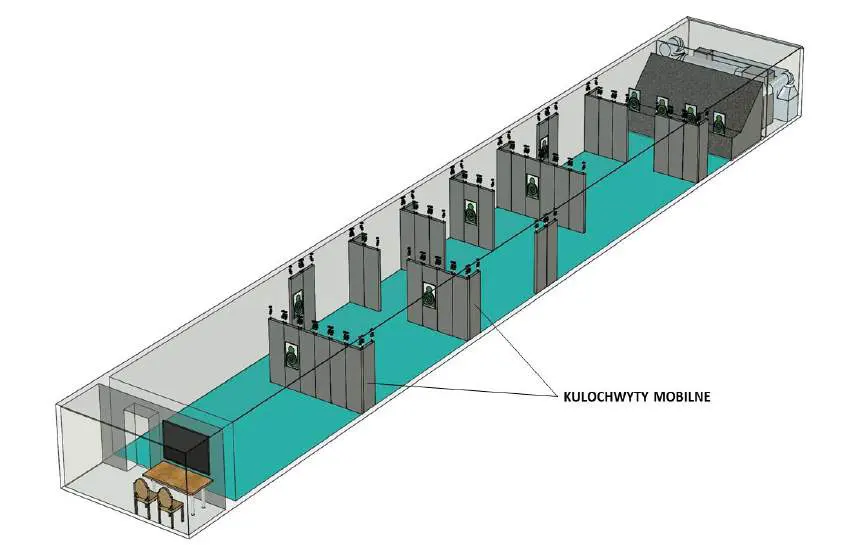

Mobile bullet traps for live-fire tactical training in sheltered and outdoor ranges. Deploy them in linear series, as standalone units, or use the connectors to build a shoot house in any configuration. Rated for 9 mm, 5.56 mm and 7.62 mm calibres incl. NATO (excluding armour-piercing, tracer and incendiary rounds).

Element	Purpose	Weight	Ballistic resistance
KMR-600	standalone mobile trap on a wheeled dolly, 50 mm anti-ricochet panels on one side	150 kg	up to 3,600 J
KMB-600	mobile trap on a wheeled dolly, 50 mm panels + 300 mm solid blocks	345 kg	up to 6,600 J (e.g. .338 LM)
KMS-600W	shoot-house deployment trap, 50 mm panels on both sides, braced against the ceiling	252 kg	up to 3,600 J
Linear connector (LL)	in-line joint between two KMS-600W traps	87 kg	—
Angle connector (LK)	square (corner) joint between two traps	106 kg	—
T-connector (LT)	square joint between three traps	159 kg	—
Edge guard (ZK)	side trim for the outer traps	71 kg	—

Trainer

ALFA multimedia shooting trainer

A compact, portable laser trainer that complements any range — and works in an ordinary room. Ideal for dry training, gun-safety education and entertainment operation. Available in two generations (Gen. 1 and Gen. 3).

Ready for operation within 90 seconds of powering on
Works in regular indoor spaces — no custom environment needed
Precise shot detection via laser cartridges inserted into real firearms and replicas
Automatic calibration and intuitive remote-control operation
Smart-TV-style interface, multilingual software
Optional automatic performance analysis with instant feedback
A wide range of scenarios — from tactical dynamic shooting to entertaining games
Laser cartridges: 9×19, .45 ACP, .357 Sig, .40 S&W, .44 Magnum, .308, .223, .300 Win, 30-06, 8×57 Mauser, 9.3×62, 6.5 SE, 12 and 20 gauge
