Container house without kitchen & bathroom

Used by the Chinese, Vietnamese and South Korean armed forces

Maximum accommodation efficiency: six foldable houses in a single shipping container.

Key features

Deployed dimensions 4,940 × 5,900 mm (approx. 29 m²)

6 units per ISO 40′ container

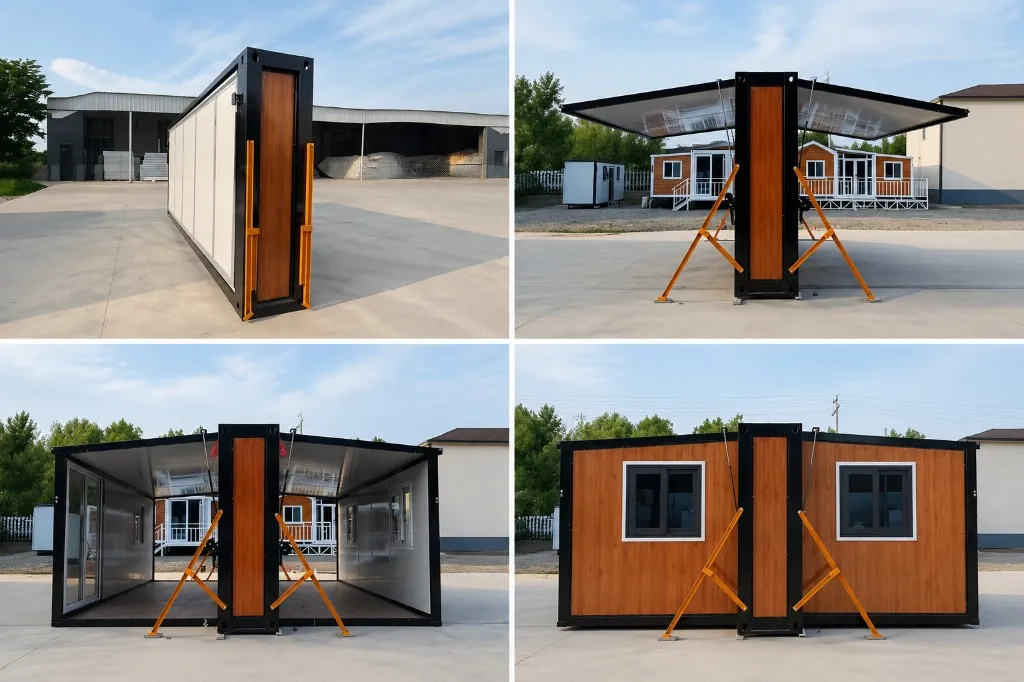

Full deployment in 4 hours

Comfortably 6 people — up to 10 in emergency

No built-in bathroom or kitchen

Complete electrical installation and lighting

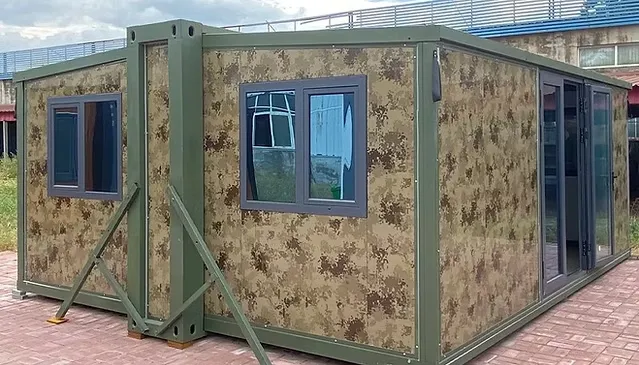

Optional finishes including camouflage pattern

Container house without kitchen & bathroom

Video

Take a look at the house

A short tour of the exterior and interior of the house in the standard grey finish:

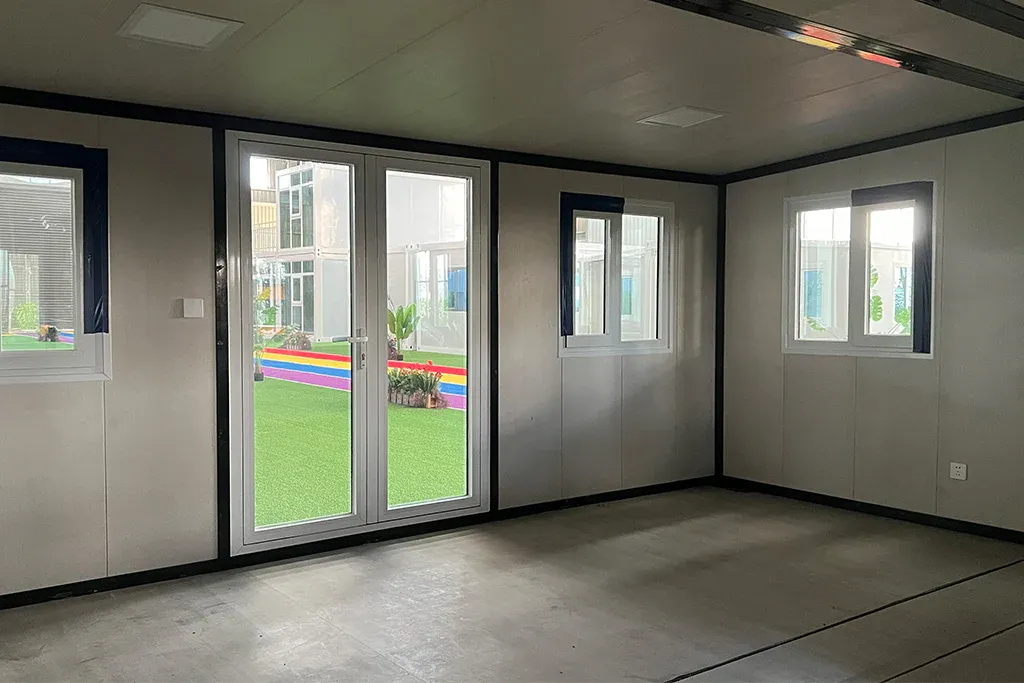

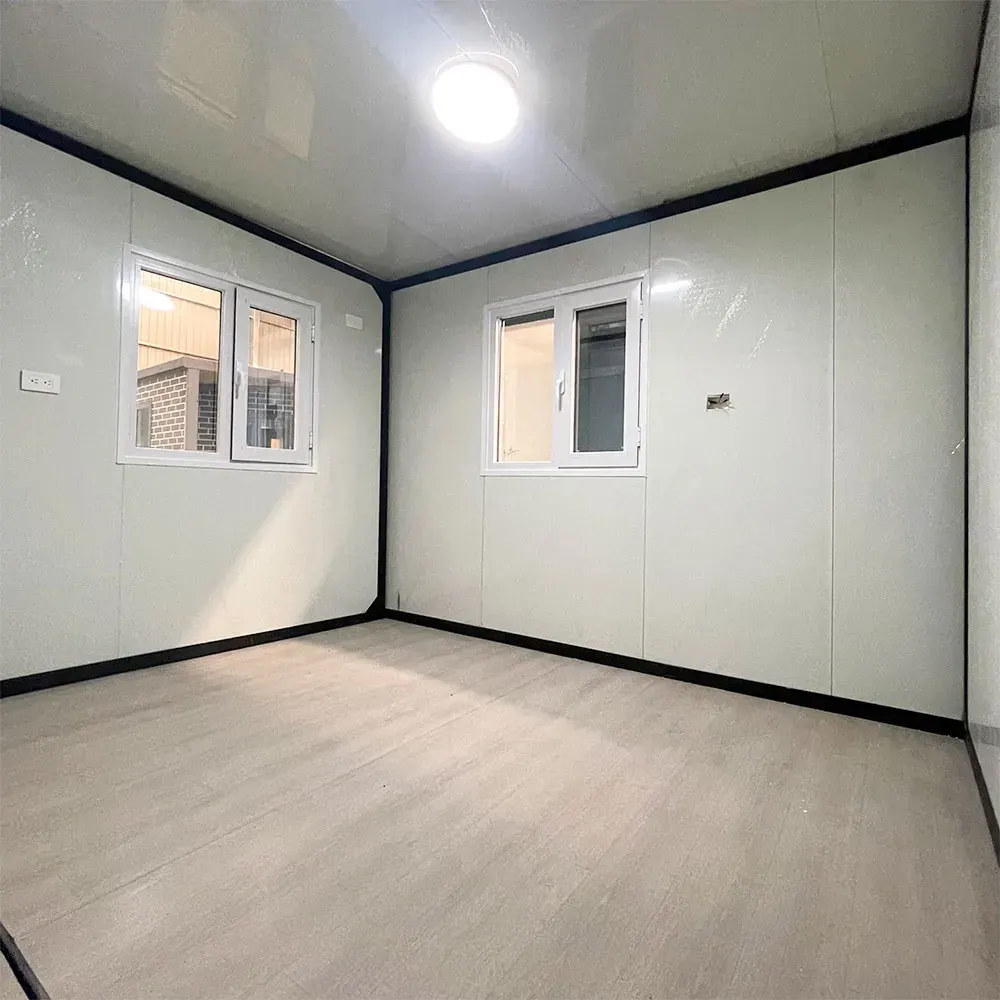

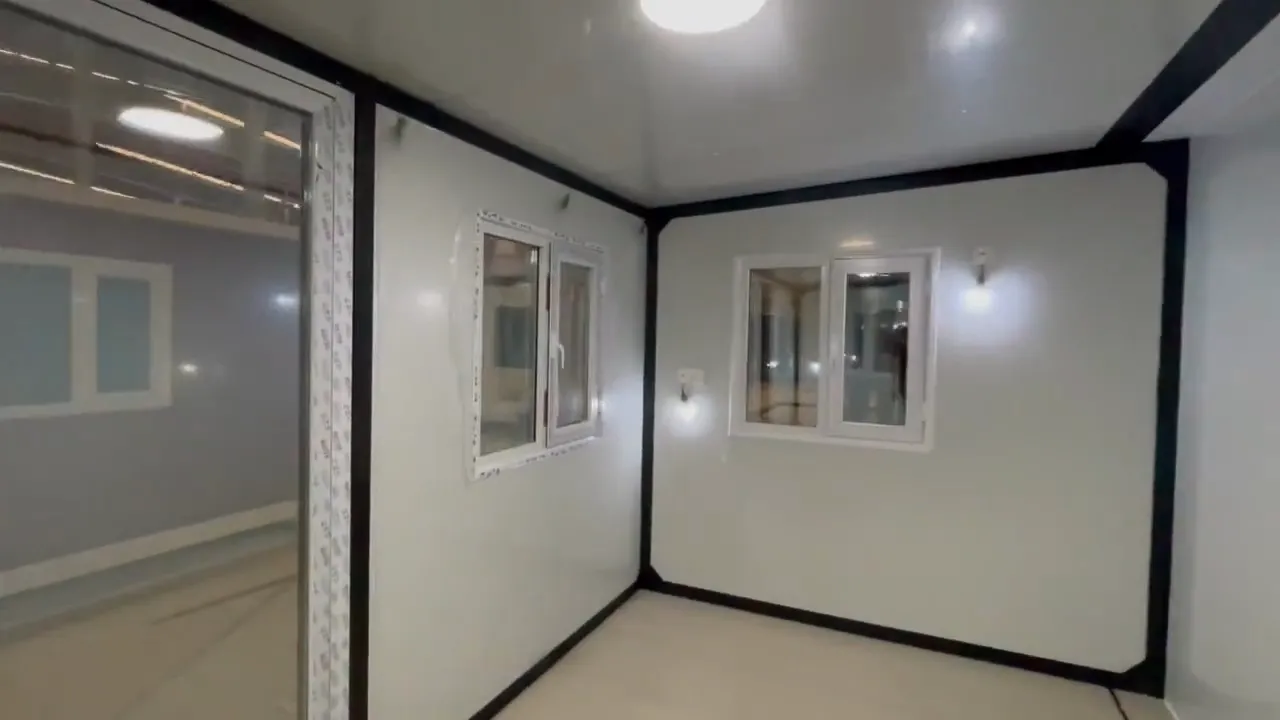

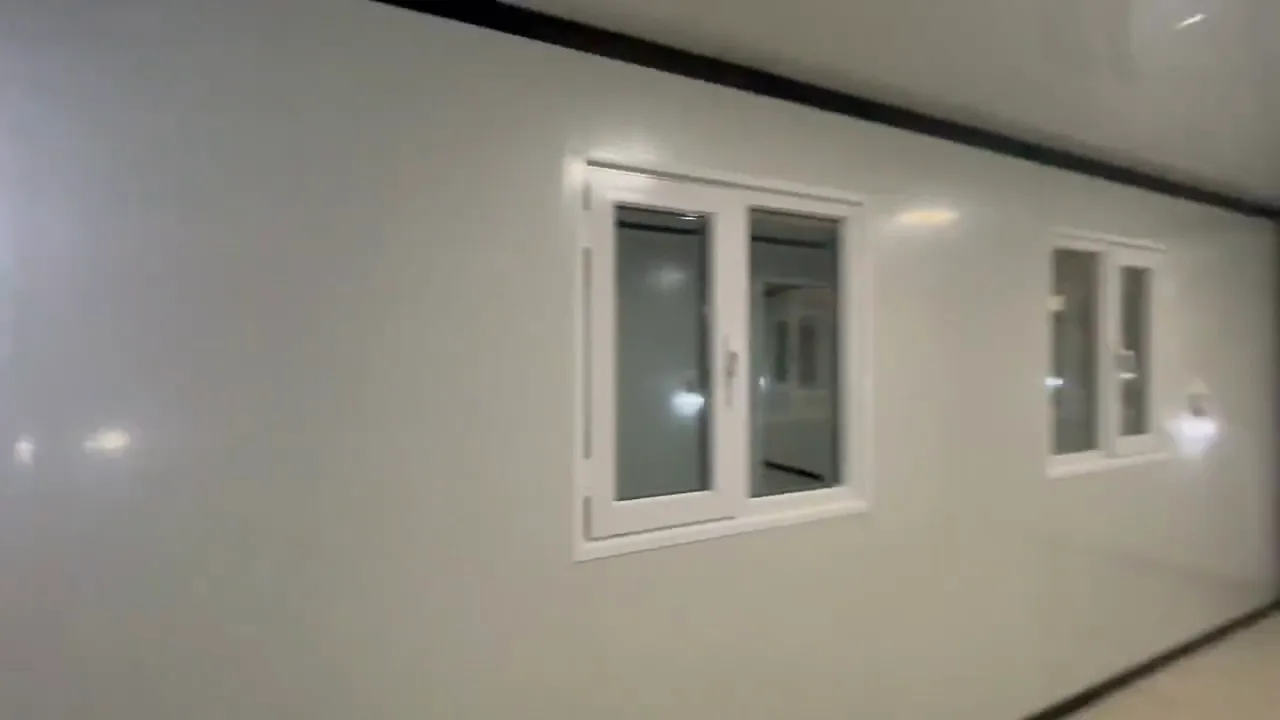

Interior tour

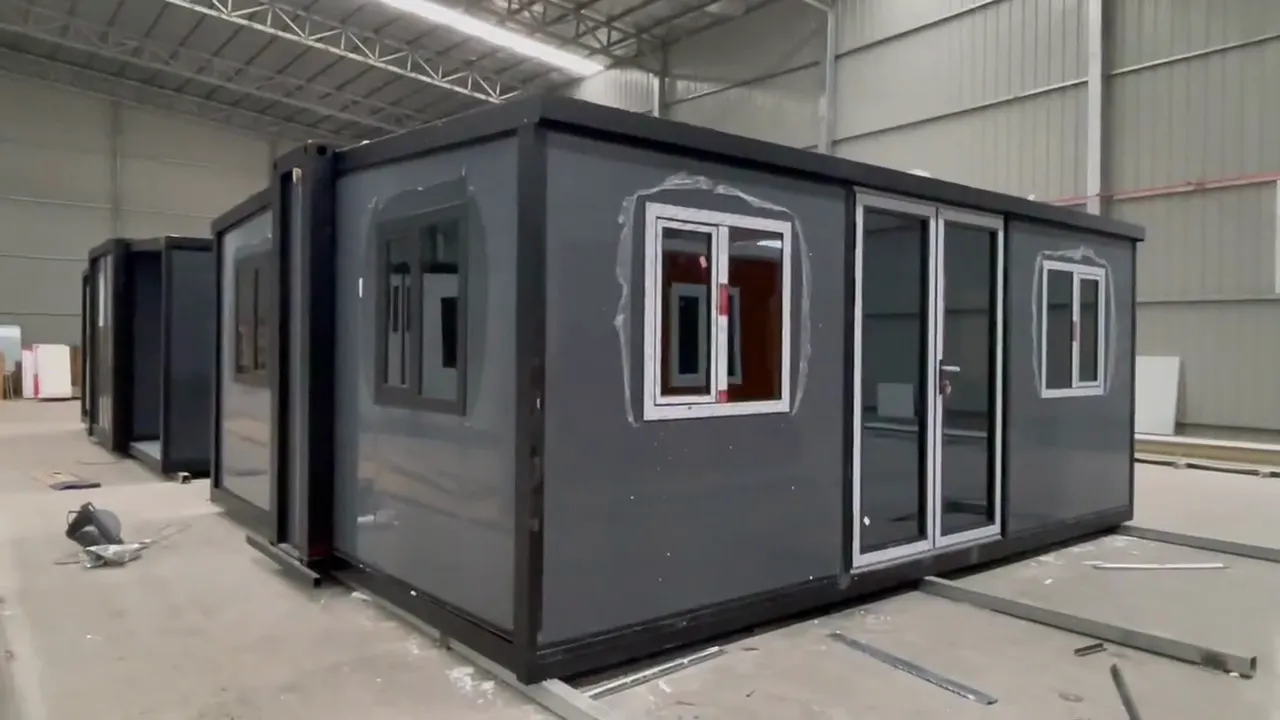

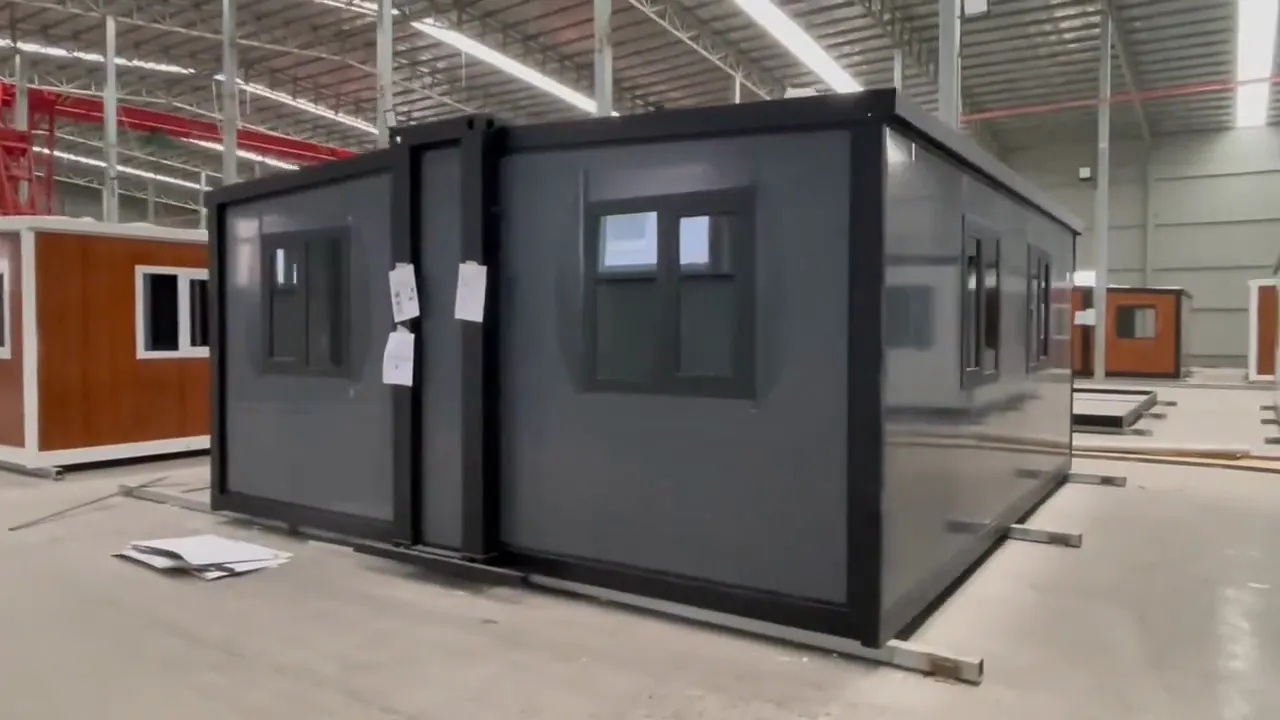

Exterior tour

Layout

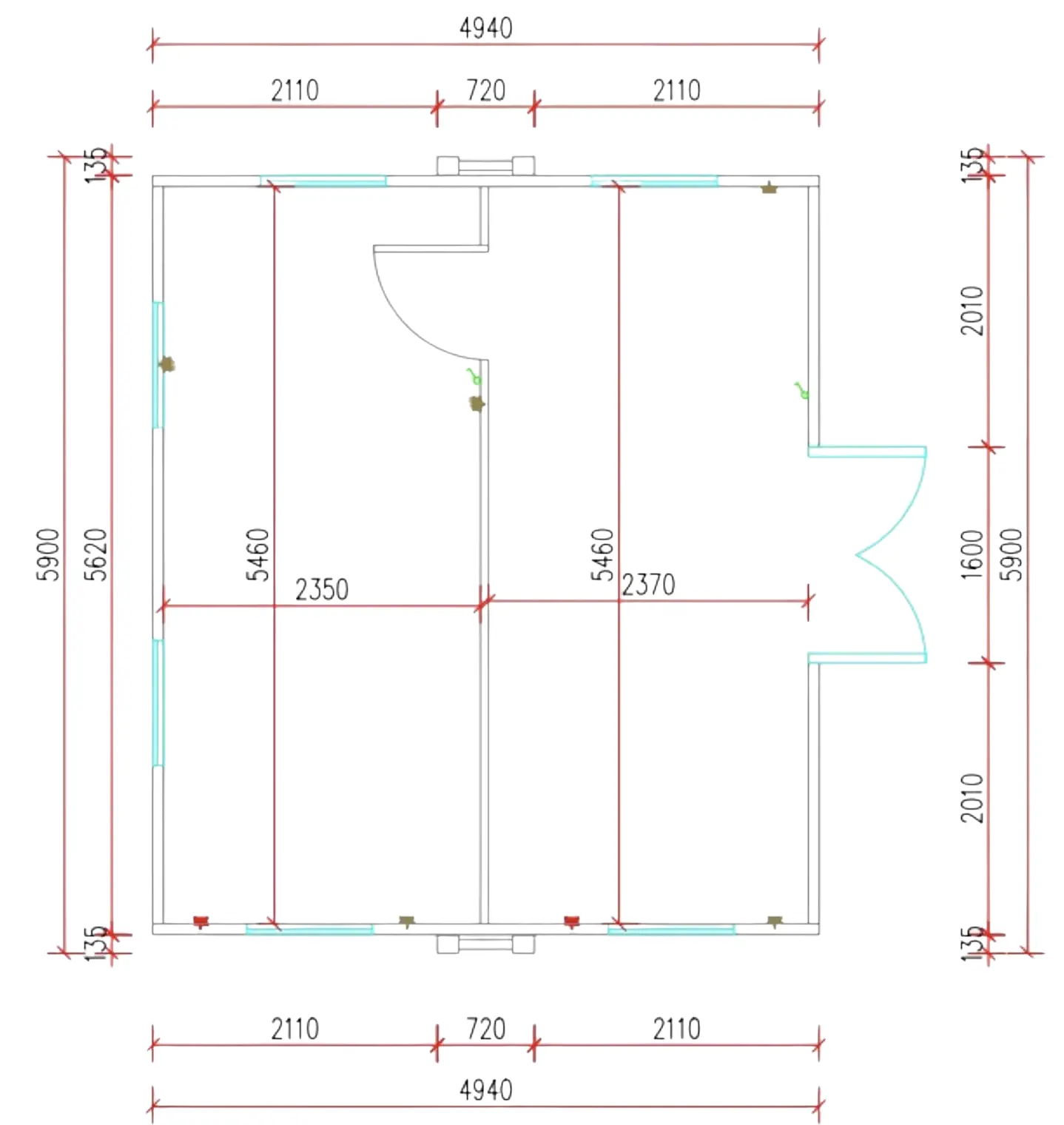

Floor plan 4,940 × 5,900 mm

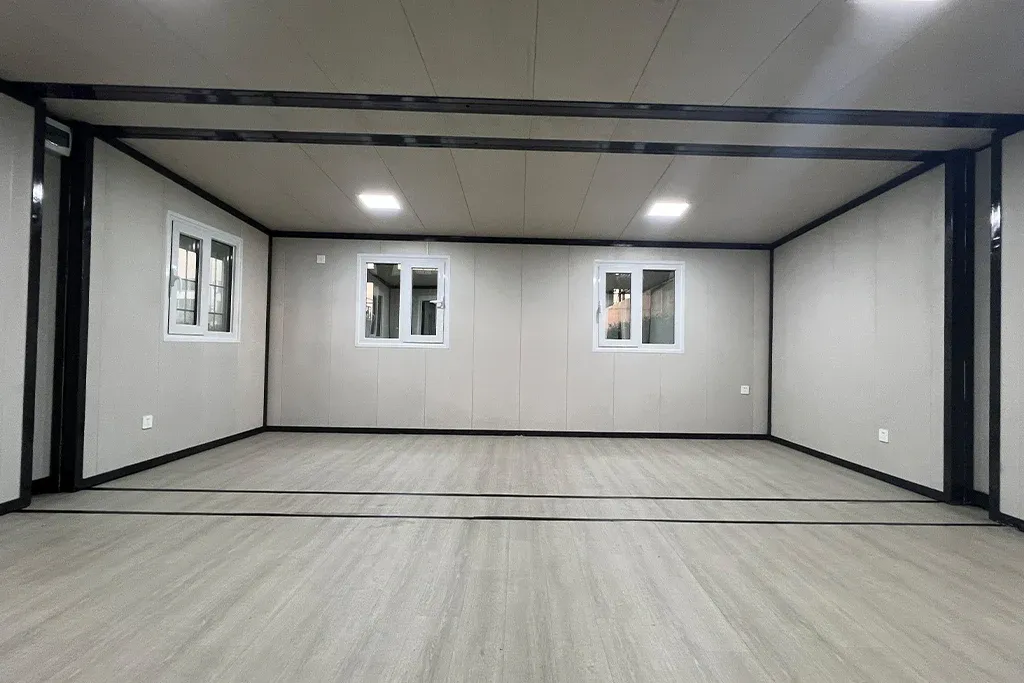

The deployed house offers a layout divided by a central partition into two rooms (2,350 and 2,370 mm). Entry is through French doors on the side; six perimeter windows provide plenty of daylight. The partition and the placement of windows and doors can be customised.

Construction

Construction & insulation

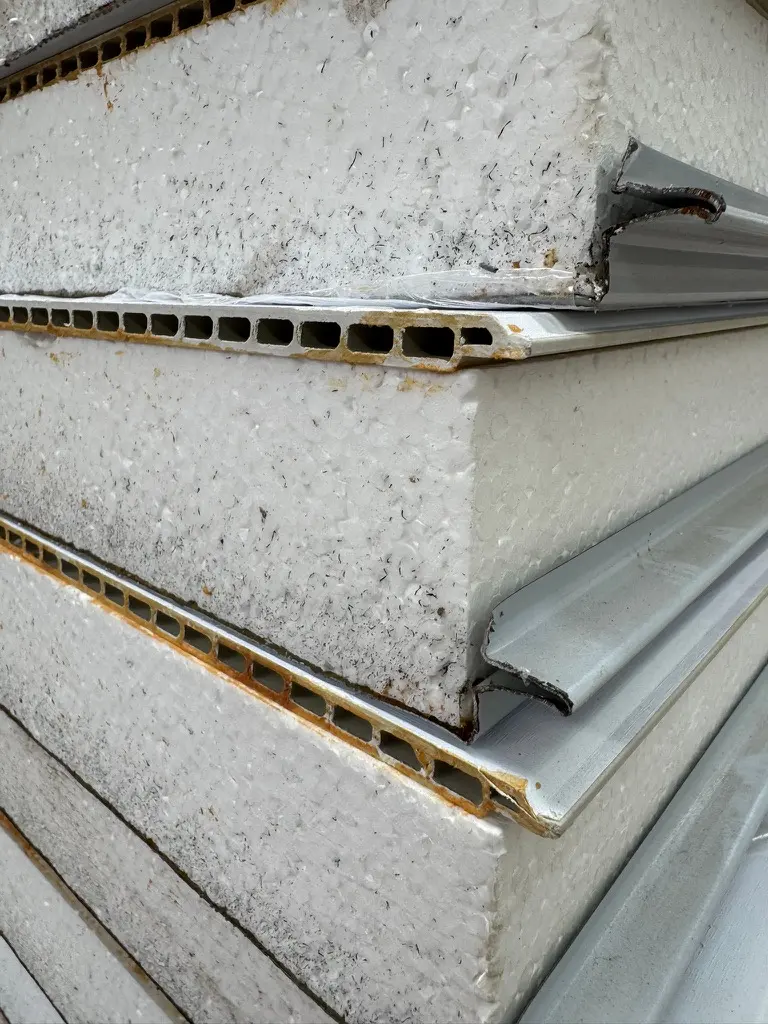

Perimeter walls of 75 mm EPS panels, internal partitions 50 mm EPS

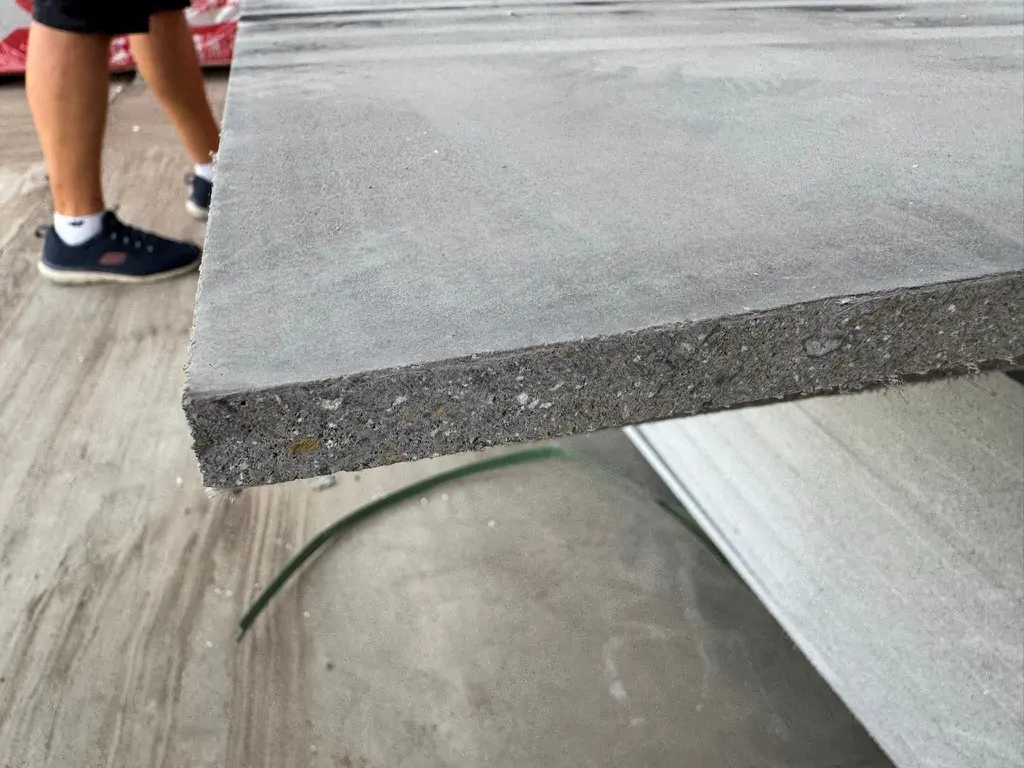

Cement-fibre floor panels — waterproof, insulated, insect-resistant

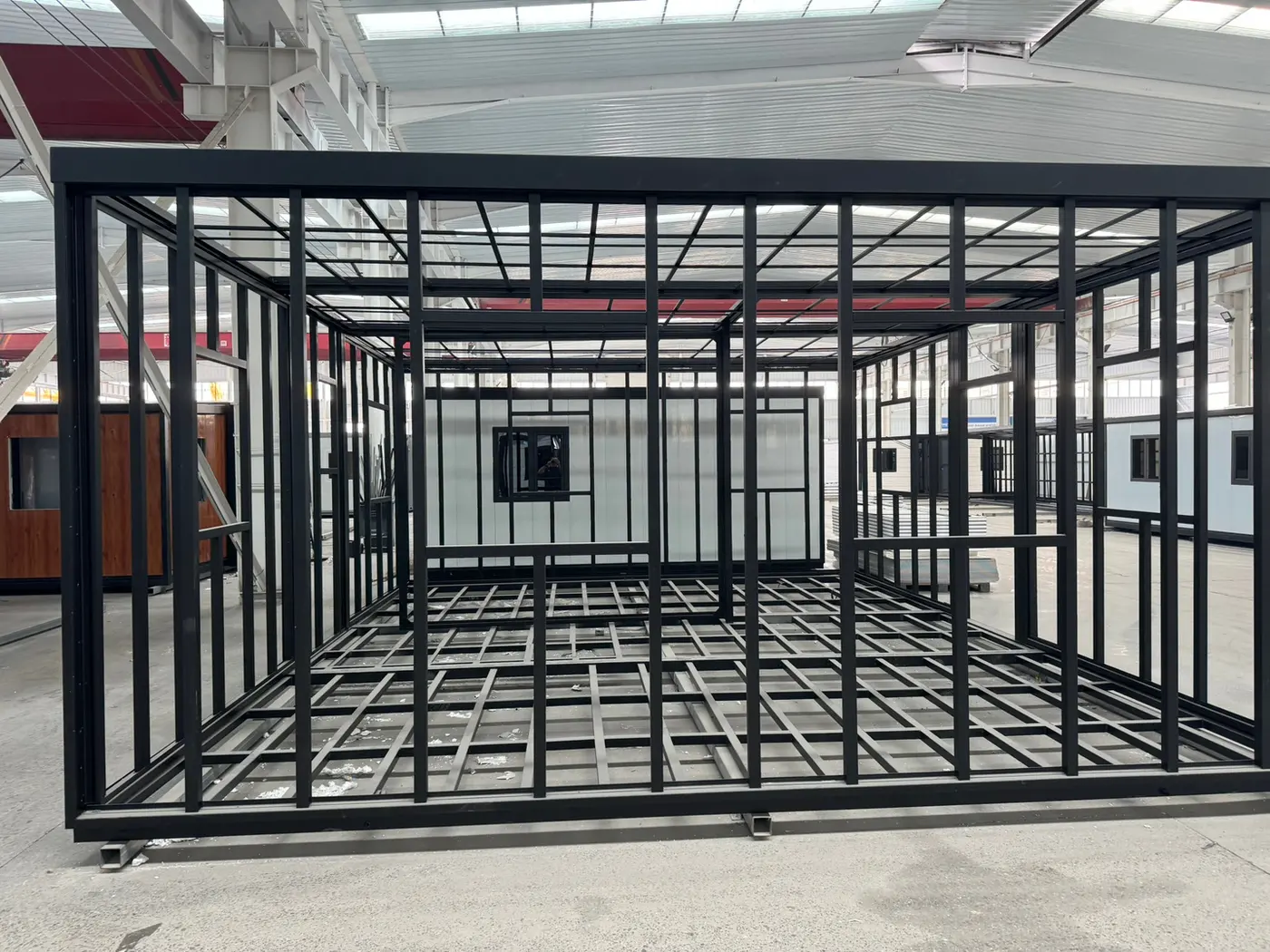

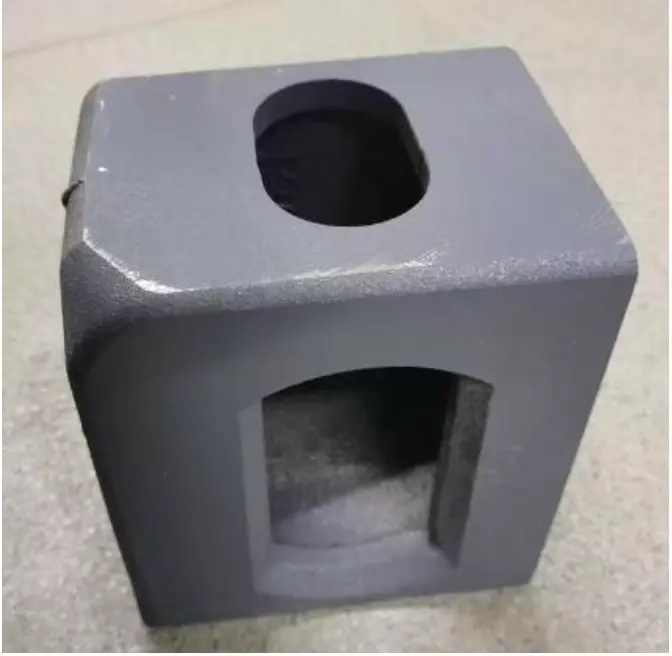

Galvanised steel base frame and cast-iron lifting heads rated for repeated loading
Removable installation supports for easy opening
Airtight and watertight top seal, double bottom seal
Synthetic bamboo-fibre ceiling with integrated lighting
